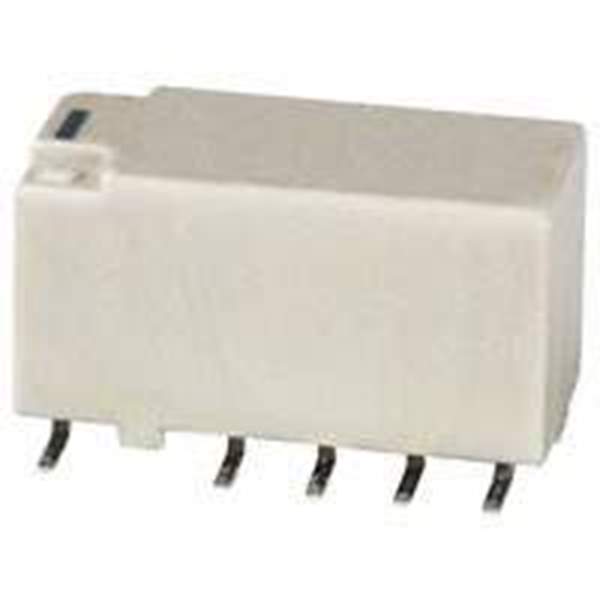

TX2SA-L2-24V Real Image
Same model may have multiple batches, images only for reference.

TX2SA-L2-24V

Part No TX2SA-L2-24V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 24VDC / Telecom Relay DPDT (2 Form C) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic Electric Works
Series TX
Package Tube
Mounting Type Surface Mount
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 220VDC - Max
Coil Current 8.3 mA
Coil Type Latching, Dual Coil
Termination Style Gull Wing
Seal Rating Sealed - Fully
Must Operate Voltage 18 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver (Ag) , Gold (Au)
Relay Type Telecom
Coil Resistance 2.88 kOhms
Base Product Number TX2SA
Standard Package 40
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1341140-TX2SA-L2-24V
Ultra Librarian 3D Model Ultra Librarian TX2SA-L2-24V CAD Model

Description

The TX2SA-L2-24V DPDT telecom relay is a surface mount relay that features a gull wing termination style manufactured by .

  • Termination Style: Gull Wing
  • Contact Material: Silver (Ag), Gold (Au)
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Contact Rating (Current): 2A
  • Switching Voltage: 220VDC - Max
  • Type: Signal Relay
  • Standard Package: 40
  • Packaging: Tube
  • Operating Temperature: -40°C ~ 85°C
  • ECCN: EAR99
