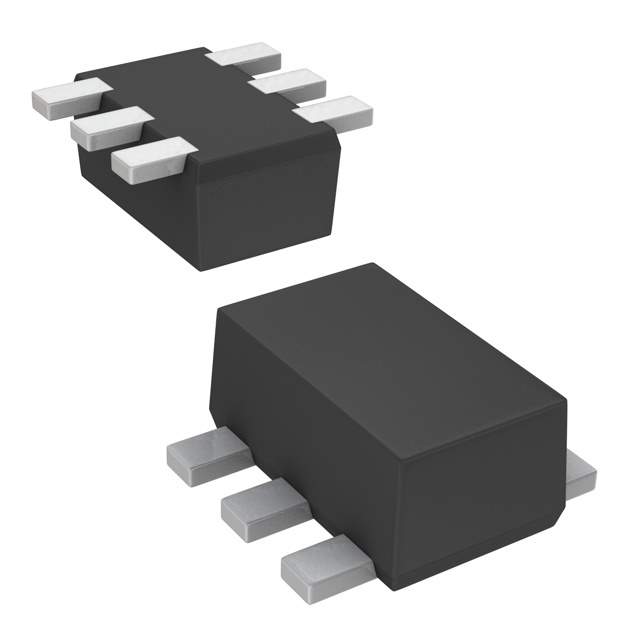

UP04534G0L

Name: UP04534G0L
Brand: Panasonic
SKU: 1102390
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UP04534G0L
Manufacturer	Panasonic
Catalog	RF Transistors (BJT)
Description	TRANS 2NPN 20V 0.015A SSMINI6 / Bipolar (BJT) Transistor Array 2 NPN (Dual) 20V 15mA 650MHz 125mW Surface Mount SSMini6-F2
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Arrays
Mfr	Panasonic Electronic Components
Package	Tape & Reel
Product Status	Obsolete
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	15mA
Voltage - Collector Emitter Breakdown (Max)	20V
DC Current Gain (hFE) (Min) @ Ic, Vce	65 @ 1mA, 6V
Power - Max	125mW
Frequency - Transition	650MHz
Temperature Range - Operating	125°C (TJ)
Mounting	SMD (SMT)
Package / Case	SOT-563, SOT-666
Supplier Device Package	SSMini6-F2
Base Product Number	UP0453
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.21.0075
Other Names	UP04534G0LDKR,UP04534G0LCT,UP04534G0LTR
Standard Package	8,000
Win Source Part Number	1102390-UP04534G0L
Ultra Librarian 3D Model	Ultra Librarian UP04534G0L CAD Model

Alternative Products

Description

The UP04534G0L is a dual NPN bipolar transistor array designed for use in discrete semiconductor products.

Maximum power rating: 125mW
Maximum collector-emitter breakdown voltage: 20V
Maximum collector current: 15mA
DC current gain: 65 @ 1mA and 6V
Frequency transition: 650MHz
Package: SOT-563 or SOT-666 package
Manufacturer: Panasonic Electronic Components
Status: now obsolete.
