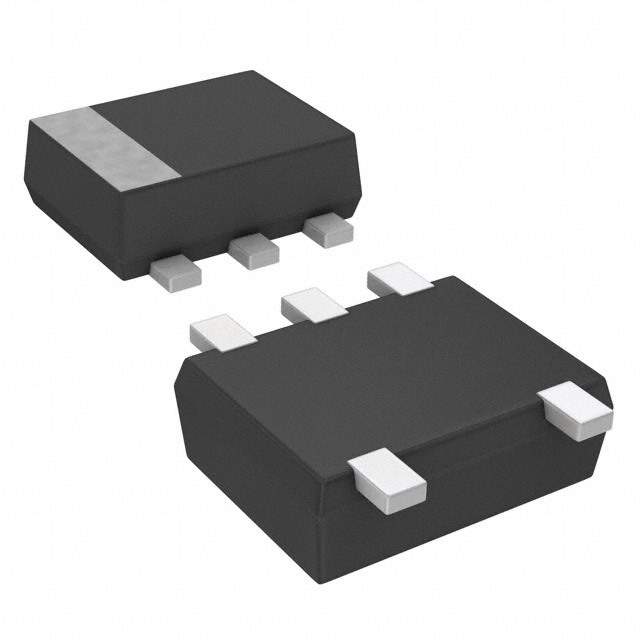

UP0KG8D00L Real Image
Same model may have multiple batches, images only for reference.

UP0KG8D00L

Part No UP0KG8D00L
Manufacturer Panasonic
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS PNP 0.125W SSMINI5
Datasheet
UP0KG8D00L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity PNP - Pre-Biased + Diode
Maximum Current Collector 80mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 47k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 80 @ 5mA, 10V
Max Vce (sat) 250mV @ 300μA, 10mA
Collector Cut-off Current(Max) 500nA
Frequency - Transition 80MHz
Maximum Power Dissipation 125mW
Mounting SMD (SMT)
Case / Package SSMini5-F2
Win Source Part Number 1116502-UP0KG8D00L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UP0KG8D00L CAD Model

Description

This PNP transistor with a pre-biased diode is manufactured by Panasonic Electronic Components.

  • Frequency Transition: 80MHz
  • Maximum Current Collector: 80mA
  • VCEO: 50V
  • Maximum Power Dissipation: 125mW
  • Case/Package: SSMini5-F2
  • Popularity: Medium
  • Status: Obsolete (EOL)
  • Supply and Demand: Balance
