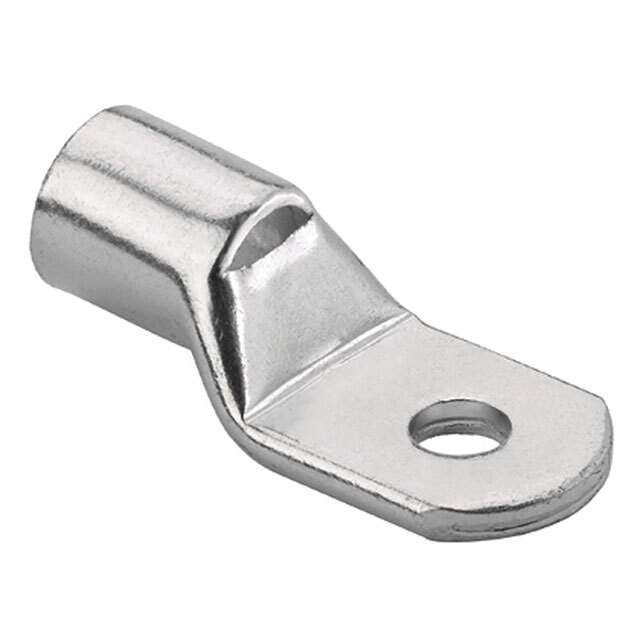

LCMA120-10-L Real Image
Same model may have multiple batches, images only for reference.

LCMA120-10-L

Part No LCMA120-10-L
Manufacturer Panduit Corp
Catalog Terminals
Description CONN TERM RECT RING 120MM #M10 / Ring Terminal Connector M10 Stud Flat Sided, Tubular (Battery Lugs) 120mm² Crimp
Datasheet
LCMA120-10-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Lug®
Package Bulk
Terminal Type Flat Sided, Tubular (Battery Lugs)
Stud/Tab Size M10 Stud
Thickness 0.138" (3.51mm)
Width - Outer Edges 1.083" (27.51mm)
Length - Overall 2.559" (65.00mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 120mm²
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number LCMA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 07498376956,298-22355,LCMA120-10-L-ND
Standard Package 1
Win Source Part Number 992653-LCMA120-10-L
Ultra Librarian 3D Model Ultra Librarian LCMA120-10-L CAD Model

Description

The LCMA120-10-L is a flat-sided, tubular terminal lug from Panduit Corp.

  • Connector Type: Crimp
  • Wire Gauge: 120mm²
  • Stud/Tab Size: M10
  • Thickness: 0.138 inches
  • Width: 1.083 inches
  • Overall Length: 2.559 inches
  • Insulation: Non-insulated
  • Insulation Diameter: -
  • Application: Free-hanging (in-line)
  • Contact Finish: Tin
  • ECCN: EAR99
  • REACH: Unaffected
  • Application Suitability: Battery and power applications
