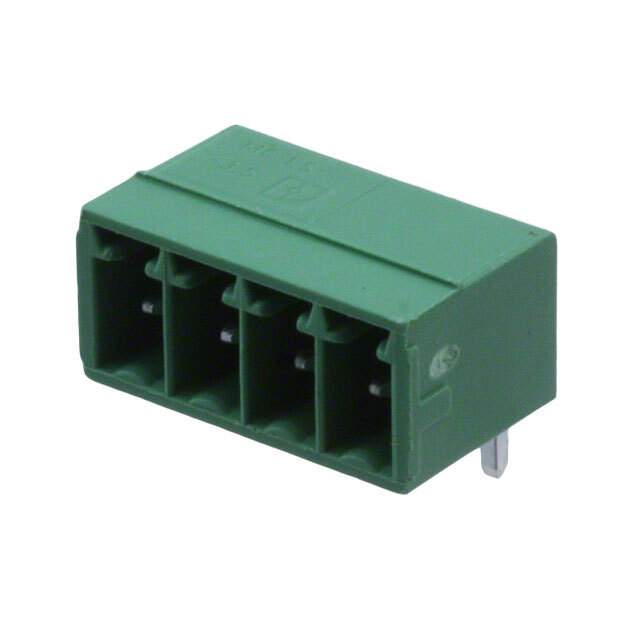

1844236 Real Image
Same model may have multiple batches, images only for reference.

1844236

Part No 1844236
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS 90DEG 3.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON MC
Package Bulk
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.134" (3.40mm)
Insulation Height 0.285" (7.25mm)
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849482-1844236
Ultra Librarian 3D Model Ultra Librarian 1844236 CAD Model

Description

The 849482-1844236 is a terminal block header from the COMBICON MC series.

  • Design: Shrouded
  • Pin Gender: Male
  • Positions per Level: Four
  • Pitch: 0.138" (3.50mm)
  • Orientation: Right Angle
  • Current Rating (IEC): 12A
  • Voltage Rating (IEC): 250V
  • Manufacturer: Phoenix Contact
  • Material: Polybutylene Terephthalate (PBT)
  • MSL Level: 1
