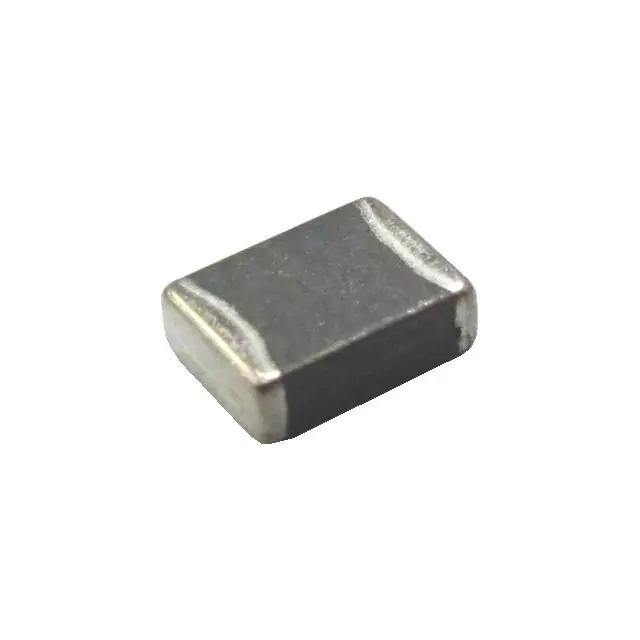

Same model may have multiple batches, images only for reference.
BKPB002012104R7MA2 Pulse
Same model may have multiple batches, images only for reference.

BKPB002012104R7MA2

Part No BKPB002012104R7MA2
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 4.7UH 700MA 260MOHM SM
Datasheet
BKPB002012104R7MA2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series BKPB
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 200mA
Shielding Shielded
DC Resistance (DCR) 260mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 3 MHz
Features -
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369889-BKPB002012104R7MA2
Ultra Librarian 3D Model Ultra Librarian BKPB002012104R7MA2 CAD Model

Description

The BKPB002012104R7MA2 is a fixed inductor designed for use in inductors, coils, and chokes applications.

  • Inductance: 4.7µH
  • Current Rating: 700mA
  • Inductor Type: Fixed
  • Tolerance: ±20%
  • Package / Case: 0805 (2012 Metric)
  • Mounting Type: Surface Mount
  • Material: Ferrite
  • Shielding: Shielded
  • DC Resistance (DCR): 260mOhm maximum
