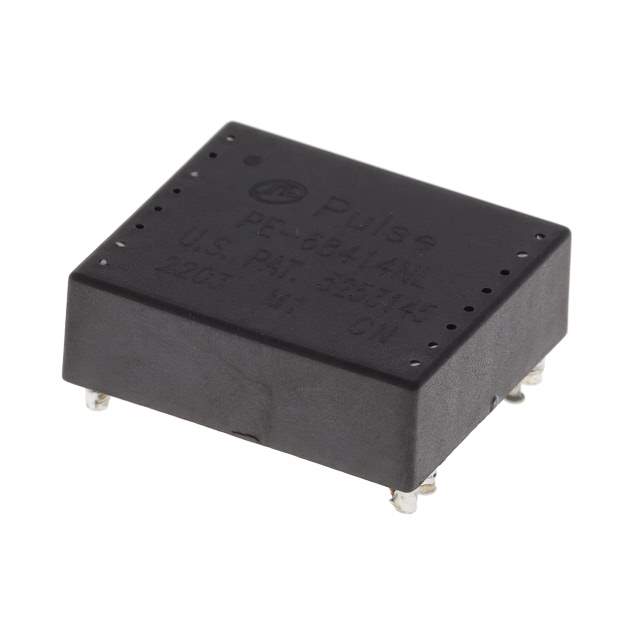

PE-68414NL Real Image
Same model may have multiple batches, images only for reference.

PE-68414NL

Part No PE-68414NL
Manufacturer Pulse
Catalog Switching Converter, SMPS Transformers
Description XFRMR FLYBCK FOR 100KHZ SWITCHER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics Power
Packaging Tray
Type For DC/DC Converters
Applications Flyback Converters
Intended Chipset LM2585, LM2586, LM2587, LM2588
Chipset Manufacturer National Semiconductor
Voltage - Primary 18 ~ 36V
Voltage - Isolation 1500Vrms
Temperature Range - Operating -40°C ~ 130°C
Mounting Style SMD
Dimension 0.920" L x 1.040" W (23.37mm x 26.42mm)
Height - Seated (Maximum) 0.480" (12.19mm)
Footprint 0.920" L x 1.040" W (23.37mm x 26.42mm)
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812130-PE-68414NL
Ultra Librarian 3D Model Ultra Librarian PE-68414NL CAD Model

Description

The Pulse Electronics Power 812130-PE-68414NL transformer, designed for DC/DC converters, is manufactured by Pulse Electronics Power.

  • Type: Surface Mount Device
  • Voltage Isolation: 1500Vrms
  • Temperature Range: -40°C to 130°C
  • Popularity: Low
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 30
  • MSL Level: 1 (unlimited)
  • Dimensions: 0.920" L x 1.040" W (23.37mm x 26.42mm)
  • Maximum Seated Height: 0.480" (12.19mm)
  • Intended Chipset: LM2585, LM2586, LM2587, LM2588 (National Semiconductor)
