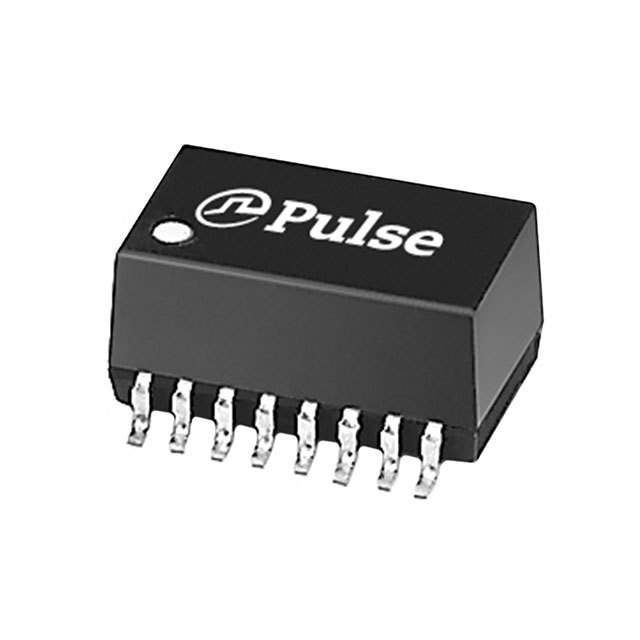

ST7033QNLT Pulse
Same model may have multiple batches, images only for reference.

ST7033QNLT

Part No ST7033QNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1 TX 1:1 RX 90UH
Datasheet
ST7033QNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Transformer Type LAN 10G Base-T
Inductance 90µH
Mounting Type Surface Mount
Size / Dimension 0.455" L x 0.275" W (11.56mm x 6.99mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 343696-ST7033QNLT
Ultra Librarian 3D Model Ultra Librarian ST7033QNLT CAD Model

Description

The 350857 is a pulse transformer designed for use in transformers in the category of Transformers - Pulse Transformers.

  • Category: Transformers - Pulse Transformers
  • Package: Tape and reel
  • Dimensions: 0.455" L x 0.275" W (11.56mm x 6.99mm)
  • Transformer Type: LAN 10G Base-T
  • Application: High-speed networking applications
  • Inductance: 90µH
  • Height: 0.225" (5.72mm) (maximum seated)
  • Standard Package: 900 pieces
  • Mounting: Surface mountable
  • Operating Temperature: 0°C to 70°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.31.2000
  • Manufacturer: Pulse
  • Status: Obsolete
