The 596022-HAT2173N-EL-E is a N-Channel MOSFET transistor with a drain to source voltage (Vdss) of 100V and a continuous drain current (Id) of 25A.

• Drain to Source Voltage (Vdss): 100V
• Continuous Drain Current (Id): 25A
• On-Resistance (Rds On): 15.3mOhm @ 12.5A and a gate-source voltage (Vgs) of 10V
• Gate Charge (Qg): 61 nC @ a voltage of 10V
• Input Capacitance (Ciss): 4350 pF @ a voltage of 10V
• Power Dissipation: 30W
• Mounting: Surface mount applications

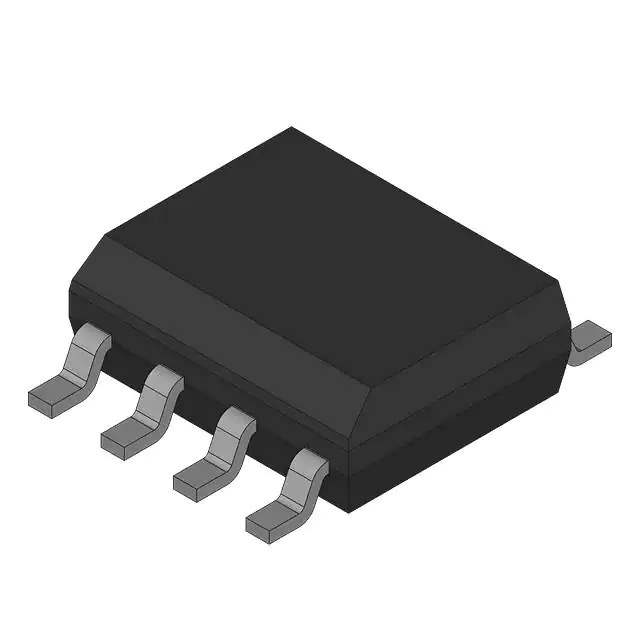

• Package: 8-PowerSOIC
• Manufacturer: Renesas Electronics America
• Status: Obsolete
