The R7S721011VCBG#AC0 is a high-performance System-on-Chip (SoC) from Renesas Electronics America, designed for a broad range of applications demanding significant processing power and connectivity. This device is part of the Renesas RZ/A series of microprocessors, which are known for their ARM Cortex-A9 cores and extensive peripheral set.

Applications:

• Human-Machine Interfaces (HMIs): Ideal for industrial control panels, building automation systems, and home appliances.
• Image Processing: Suited for applications such as barcode scanners, surveillance systems, and medical imaging devices.
• Industrial Automation: Used in programmable logic controllers (PLCs), robotics, and motor control systems.
• Networking Equipment: Can be implemented in routers, gateways, and Ethernet switches.
• Automotive Infotainment: Applicable in car navigation systems, rear-seat entertainment, and digital dashboards.

Features:

• ARM Cortex-A9 Core: Provides high-performance processing capabilities with efficient power consumption.
• Integrated Graphics Controller: Supports LCD displays with resolutions up to WQVGA, simplifying GUI development.
• Extensive Connectivity: Includes Ethernet, USB, CAN, and serial communication interfaces for versatile system integration.
• Multiple Memory Interfaces: Supports SDRAM, NAND flash, and NOR flash memory for flexible memory configurations.
• Real-Time Clock (RTC): Enables accurate timekeeping and scheduling capabilities.
• Security Features: Incorporates hardware-based security mechanisms for secure boot and data encryption.

Benefits:

• High Performance: Delivers robust processing power for demanding applications.
• Reduced System Cost: Integrates multiple functions into a single chip, reducing the need for external components.
• Simplified Development: Supported by comprehensive software development tools and libraries.
• Improved Power Efficiency: Optimizes power consumption for extended battery life in portable devices.
• Enhanced Connectivity: Offers a wide range of communication interfaces for seamless system integration.

Additional Details:

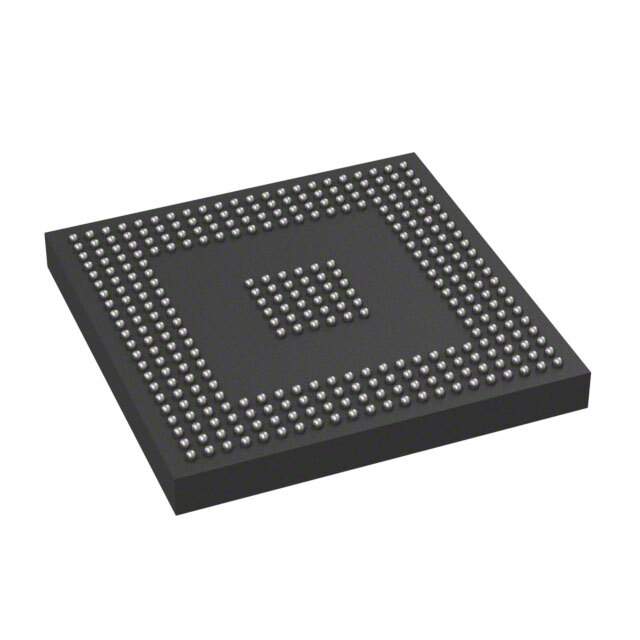

The R7S721011VCBG#AC0 operates at a clock frequency of up to 400 MHz. It features 128 KB of on-chip RAM and supports external memory up to several gigabytes. The device also includes a variety of peripherals, such as timers, ADCs, and DACs, making it suitable for a wide range of embedded applications. It is typically packaged in a BGA (Ball Grid Array) for efficient board-level assembly. The operating temperature range is -40°C to +85°C making it suitable for industrial environments. The integrated display controller supports various display sizes and resolutions, including WVGA.
