RJK1001DPP-A0#T2 Renesas Electronics America – Price, Stock & Datasheet

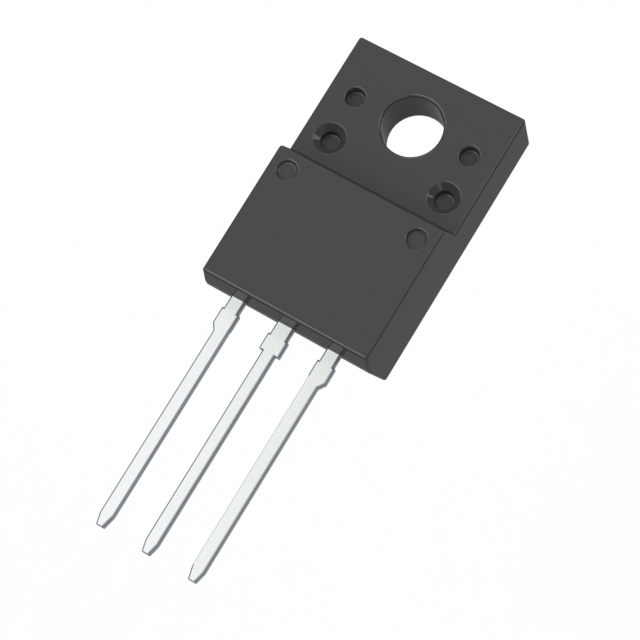

Same model may have multiple batches, images only for reference.

RJK1001DPP-A0#T2

Part No RJK1001DPP-A0#T2
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel 100 V 80A (Ta) 30W (Ta) Through Hole TO-220ABA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Renesas Electronics Corporation
Packaging Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 80A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 5.5mOhm @ 40A, 10V
Vgs(th) (Max) @ Id 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 147 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 10000 pF @ 10 V
Power Dissipation (Max) 30W (Ta)
Temperature Range - Operating 150°C
Mounting Type Through Hole
Supplier Device Package TO-220ABA
Package / Case TO-220-3
Base Product Number RJK1001
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1480268-RJK1001DPP-A0#T2
Ultra Librarian 3D Model Ultra Librarian RJK1001DPP-A0#T2 CAD Model
