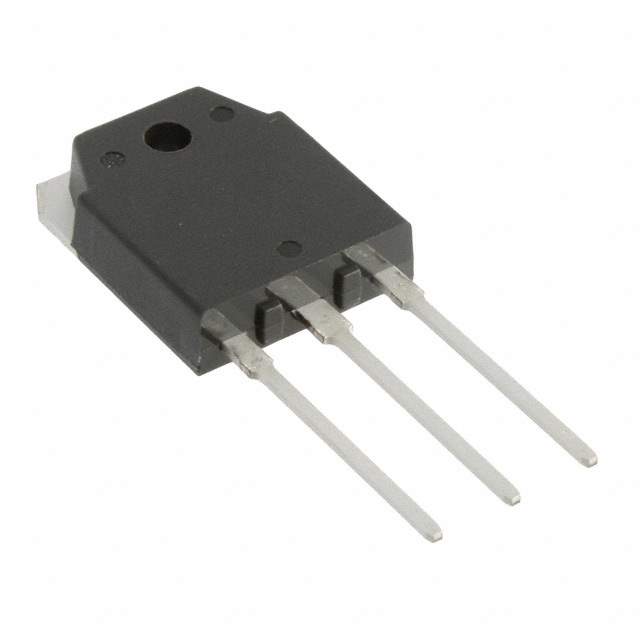

Same model may have multiple batches, images only for reference.

RJK60S7DPK-M0#T0

Name: RJK60S7DPK-M0#T0
Brand: Renesas Electronics America
SKU: 793233
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RJK60S7DPK-M0#T0
Manufacturer	Renesas Electronics America
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 600V 30A TO-3PSG / Trans MOSFET N-CH 600V 30A 3-Pin(3+Tab) TO-3PSG Tube
Datasheet	RJK60S7DPK-M0#T0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Renesas Electronics America
Packaging	Tube
Part Status	Obsolete(EOL)
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	600V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate Charge (Qg) (Maximum) @ Vgs	39nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	2300pF @ 25V
Vgs (Maximum)	+30V, -20V
FET Feature	Super Junction
Power Dissipation (Maximum)	227.2W (Tc)
Rds On (Maximum) @ Id, Vgs	125 mOhm @ 15A, 10V
Operating Temperature Range	150°C (TJ)
Mounting Style	Through Hole
Manufacturer Package	TO-3PSG
Package	TO-3PSG
Win Source Part Number	793233-RJK60S7DPK-M0#T0
Popularity	Medium
Supply and Demand Status	Limited
Family Name	RJK60S7DPK-M0
Introduction Date	April 23, 2012
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian RJK60S7DPK-M0#T0 CAD Model

Alternative Products

Description

The RJK60S7DPK-M0#T0 from Renesas Electronics America MOSFET is a super junction technology device that has a drain-source voltage of 600V.

Continuous Drain Current: 30A (Tc)
Package: TO-3PSG
Mounting Style: through-hole
Drive Voltage: 10V
Gate Charge: 39nC @ 10V
Input Capacitance: 2300pF @ 25V
Power Dissipation: 227.2W (Tc)
Rds On: 125 mOhm @ 15A, 10V
Family: RJK60S7DPK-M0
Application: discrete semiconductor products
EOL Status: obsolete
