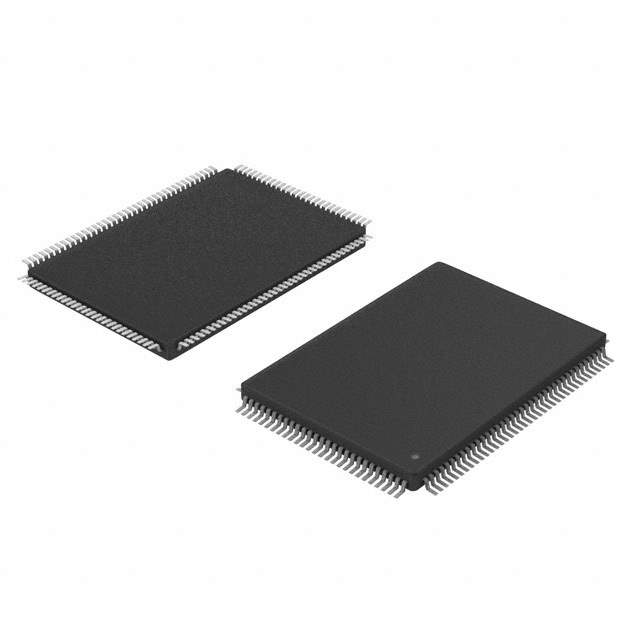

UPD78F1176AGF-GAT-AX Real Image
Same model may have multiple batches, images only for reference.

UPD78F1176AGF-GAT-AX

Part No UPD78F1176AGF-GAT-AX
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 256KB FLASH 128LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Renesas Electronics America
Packaging Tray
Core Processor 78K/0R
Data Bus Width 16-Bit
Speed 20MHz
Connectivity 3-Wire SIO, EBI/EMI, I2C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
The number of I/O 111
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
Date RAM Size 12K x 8
Supply Voltage 1.8V ~ 5.5V
Data Converters A/D 16x10b; D/A 2x8b
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 128-LQFP
Manufacturer Pack Quantity 72
MSL Level 3 (168 Hours)
Win Source Part Number 716939-UPD78F1176AGF-GAT-AX
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPD78F1176AGF-GAT-AX CAD Model

Description

The Renesas Electronics America UPD78F1176AGF-GAT-AX is a 78K/0R core processor with a speed of 20MHz.

  • Connectivity: 3-Wire SIO, EBI/EMI, I2C, LINbus, UART/USART
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Program Memory Size: 256KB (256K x 8)
  • Program Memory Type: FLASH
  • Data Converters: A/D 16x10b, D/A 2x8b
  • Temperature Range: -40°C to 85°C
  • Package: 128-LQFP
  • Supply/Demand Status: Low popularity, limited supply and demand
