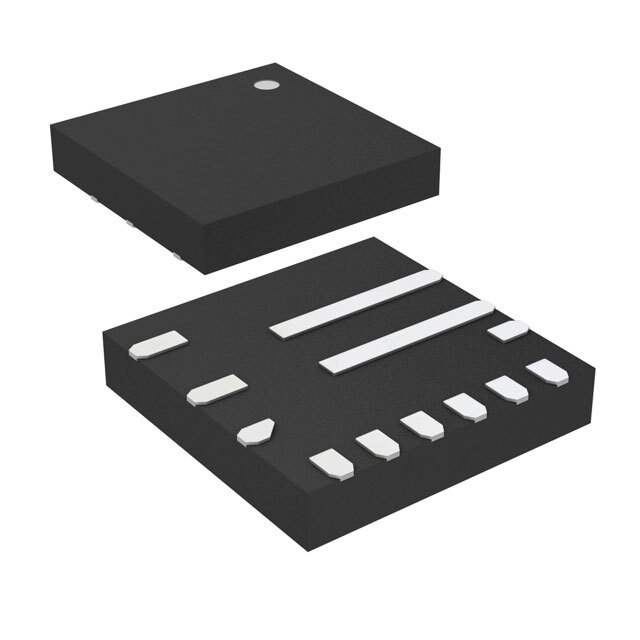

RT6258CGQUF Real Image
Same model may have multiple batches, images only for reference.

RT6258CGQUF

Part No RT6258CGQUF
Manufacturer Richtek USA Inc.
Catalog PMIC - Voltage Regulators - Linear + Switching
Description IC BUCK 23V 8A SYNC UQFN-12H(FC)
Datasheet
RT6258CGQUF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear + Switching
Mfr Richtek USA Inc.
Package Tape & Reel
Product Status Active
Topology Step-Down (Buck) Synchronous (1), Linear (LDO) (1)
Number of Outputs 2
Frequency - Switching 750kHz
Voltage/Current - Output 1 Adjustable, Fixed, 5.1V, 8A
Voltage/Current - Output 2 Adjustable, Fixed, 5V, 100mA
Voltage/Current - Output 3 Adjustable, Fixed
w/LED Driver No
w/Supervisor No
w/Sequencer No
Voltage - Supply 5.1V ~ 23V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 12-UFQFN
Supplier Device Package 12-UQFN-HL (3x3)
Base Product Number RT6258
Standard Package 1,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 835868-RT6258CGQUF
Ultra Librarian 3D Model Ultra Librarian RT6258CGQUF CAD Model

Description

The RT6258CGQUF is a voltage regulator designed for power management applications.

  • Function: It combines a step-down (buck) synchronous converter and a linear regulator (LDO) in a single package.
  • Input Voltage Range: The regulator operates with an input voltage range of 5.1V to 23V
  • Outputs: has two outputs.
  • Output 1: is adjustable or fixed with options for 5.1V and 8A.
  • Output 2: is adjustable or fixed with options for 5V and 100mA.
  • Mounting: The RT6258CGQUF is surface mountable
  • Package: and comes in a 12-UFQFN package.
  • Temperature Range: With a temperature range of -40°C to 125°C, it can withstand harsh operating conditions.
  • Manufacturer: The RT6258CGQUF is an active product from Richtek USA Inc.
