The RP102K121D5 is a low voltage LDO (Low Dropout) regulator manufactured by Ricoh. It is designed for use in a variety of portable electronic devices and power management applications. It provides a stable and accurate output voltage with low quiescent current, making it suitable for battery-powered systems.

Applications:

• Smartphones and mobile devices: Power management for various components.
• Wearable technology: Smartwatches, fitness trackers, and other battery-powered devices.
• IoT (Internet of Things) devices: Sensors, trackers, and other connected devices.
• Portable media players: Providing stable power for audio and video playback.
• Wireless communication devices: Bluetooth modules, Wi-Fi modules.

Features:

• Low Dropout Voltage: Provides stable output even with a small difference between input and output voltage.
• Low Quiescent Current: Minimizes battery drain, extending battery life.
• High Ripple Rejection: Filters out noise from the input voltage, ensuring a clean output.
• Overcurrent Protection: Protects the regulator and the connected load from damage due to excessive current.
• Thermal Shutdown Protection: Prevents damage from overheating.
• Small Package: Suitable for compact electronic devices.
• Fixed Output Voltage: Provides a stable and accurate output voltage. The voltage is typically 1.2V based on the part number.

Benefits:

• Extended Battery Life: Low quiescent current minimizes power consumption, extending battery life in portable devices.
• Stable and Accurate Output: Provides a reliable power supply for sensitive electronic components.
• Protection Against Damage: Overcurrent and thermal shutdown protection prevent damage to the regulator and connected devices.
• Easy Integration: Small package and fixed output voltage simplify design and integration.
• Improved System Performance: High ripple rejection ensures a clean power supply, improving the performance of connected devices.

Additional Details:

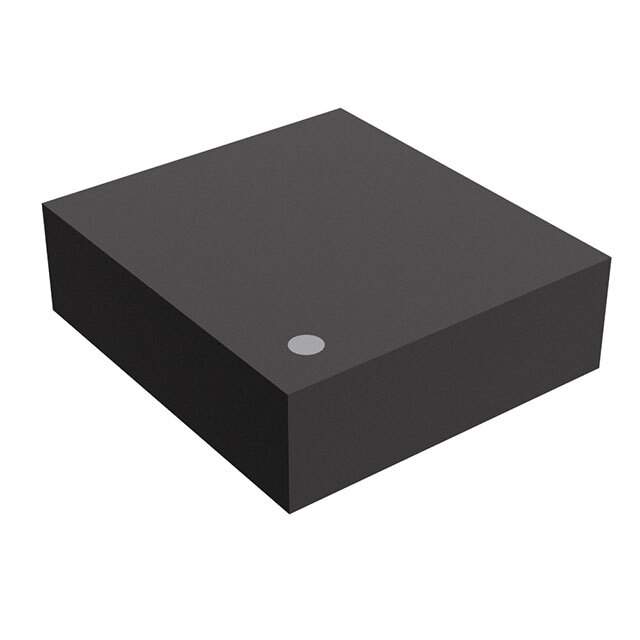

The RP102K121D5 typically operates with an input voltage range of 1.7V to 5.5V. It has a low dropout voltage, typically around 150mV at 100mA load. The output voltage is fixed at 1.2V. It is available in a small package such as DFN(UTDFN)1.2x1.6-6. The regulator also includes a chip enable (CE) pin that can be used to turn the regulator on and off, further reducing power consumption when the device is not in use. Its internal circuitry includes a bandgap reference, an error amplifier, and a P-channel MOSFET as the pass transistor.
