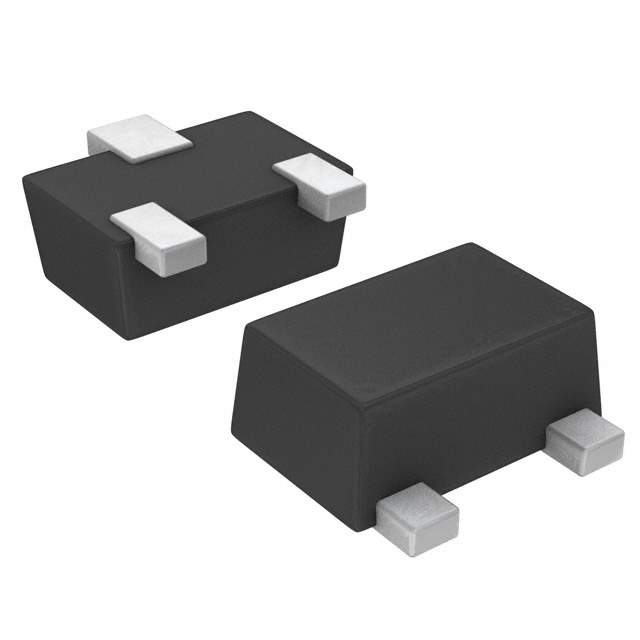

The DTA044EM is a PNP pre-biased transistor manufactured by Rohm Semiconductor. This transistor features integrated bias resistors, simplifying circuit design by reducing external component requirements. It's designed for general-purpose switching applications and small signal amplification where a pre-biased configuration is advantageous.

Applications:

• Digital Inverters: Used as an inverting element in digital logic circuits.
• Switching Circuits: Employed as a switching device for controlling LEDs, small relays, and other low-power loads.
• Amplification: Suitable for small-signal amplification stages in audio and instrumentation circuits.
• Level Shifting: Acts as a level shifter in interface circuits between different voltage domains.
• General Purpose Switching: Used in general-purpose switching applications in various electronic circuits.

Features:

• Built-in Bias Resistors: Integrates two bias resistors (R1 = 4.7 kΩ, R2 = 47 kΩ), simplifying design and reducing BOM.
• PNP Transistor: A PNP transistor configuration for low-side switching.
• Small Signal Operation: Designed for low-current and low-voltage operation.
• Surface Mount Package: Available in a small surface mount package (SOT-346), ideal for compact PCB layouts.
• Halogen Free: Meets halogen-free standards for environmental considerations.

Benefits:

• Reduced Component Count: Integrated bias resistors reduce the number of external components needed, lowering costs and improving reliability.
• Simplified Circuit Design: Eliminates the need to calculate bias resistor values, simplifying the design process.
• Improved Reliability: Reduces the number of solder joints, enhancing overall circuit reliability.
• Space Saving: Small SOT-346 package enables high-density circuit designs.
• Ease of Use: Straightforward integration into various electronic circuits.

Additional Details:

The DTA044EM typically has a collector-emitter voltage (VCEO) of -50V and a collector current (IC) of -100mA. The power dissipation is around 200mW. The input resistor (R1) is 4.7 kΩ, and the resistor between base and power supply (R2) is 47 kΩ. This configuration allows for defined input characteristics and simplifies biasing. The SOT-346 package is designed for automated assembly processes. The device is commonly used where a pre-biased switching solution is required with a specific input impedance. Refer to the Rohm Semiconductor datasheet for detailed electrical and mechanical specifications.
