Same model may have multiple batches, images only for reference.

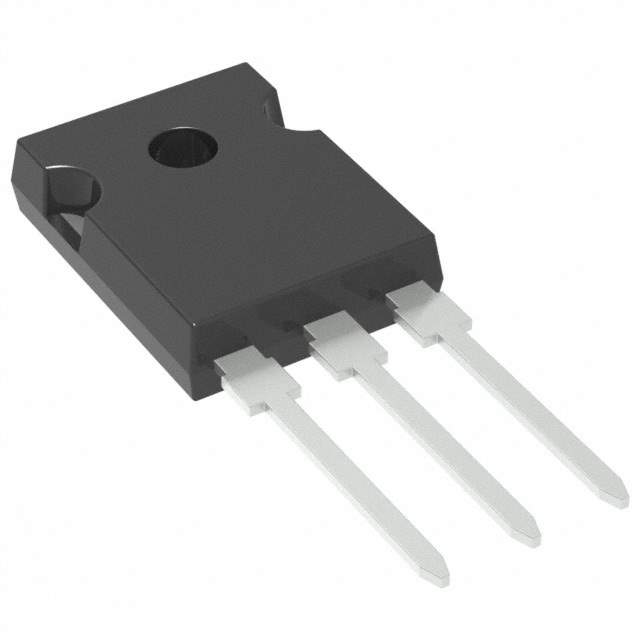

R6042JNZ4C13 Real Image
Same model may have multiple batches, images only for reference.

R6042JNZ4C13

Part No R6042JNZ4C13
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 42A TO247G / N-Channel 600 V 42A (Tc) 495W (Tc) Through Hole TO-247G
Datasheet
R6042JNZ4C13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Rohm Semiconductor
Packaging Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 42A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 15V
Rds On (Max) @ Id, Vgs 104mOhm @ 21A, 15V
Vgs(th) (Max) @ Id 7V @ 5.5mA
Gate Charge (Qg) (Max) @ Vgs 100 nC @ 15 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 3500 pF @ 100 V
Power Dissipation (Max) 495W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Through Hole
Supplier Device Package TO-247G
Case / Package TO-247-3
Base Product Number R6042
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 30
Win Source Part Number 1324347-R6042JNZ4C13
Ultra Librarian 3D Model Ultra Librarian R6042JNZ4C13 CAD Model

Description

The Rohm Semiconductor 1324347-R6042JNZ4C13 is an N-channel MOSFET transistor with a drain to source voltage (Vdss) of 600V and a continuous drain current (Id) of 42A (Tc) @ 25°C.

  • Maximum Rds On: 104mOhm @ 21A and 15V
  • Maximum Vgs(th): 7V @ 5.5mA
  • Power Dissipation (Max): 495W (Tc)
  • Gate Charge (Qg) (Max): 100 nC @ 15V
  • Input Capacitance (Ciss) (Max) @ Vds: 3500 pF @ 100V
  • Package: TO-247G package
  • Temperature Range: -55°C to 150°C (TJ)
  • Win Source Part Number: 1324347-R6042JNZ4C13
