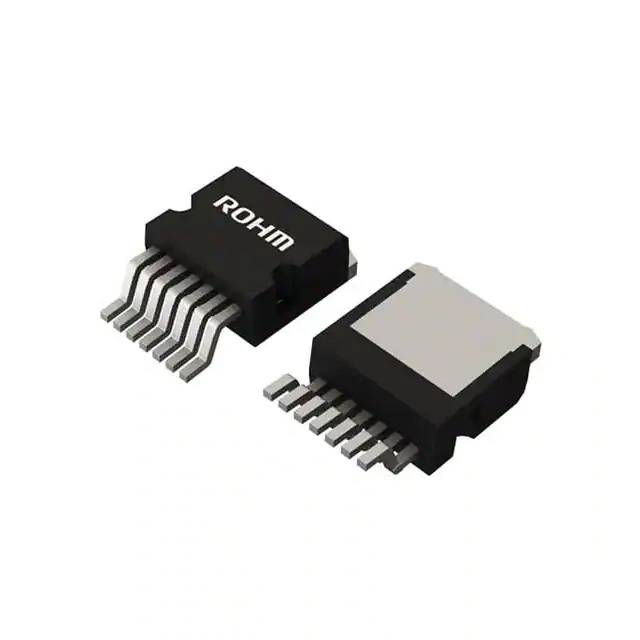

Same model may have multiple batches, images only for reference.
SCT4062KW7HRTL Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SCT4062KW7HRTL

Part No SCT4062KW7HRTL
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description 1200V, 24A, 7-PIN SMD, TRENCH-ST / N-Channel 1200 V 24A (Tc) 93W Surface Mount TO-263-7L
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V
Current - Continuous Drain (Id) @ 25°C 24A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 18V
Rds On (Max) @ Id, Vgs 81mOhm @ 12A, 18V
Vgs(th) (Max) @ Id 4.8V @ 6.45mA
Gate Charge (Qg) (Max) @ Vgs 64 nC @ 18 V
Vgs (Max) +21V, -4V
Input Capacitance (Ciss) (Max) @ Vds 1498 pF @ 800 V
FET Feature -
Power Dissipation (Max) 93W
Temperature Range - Operating 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package TO-263-7L
Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1355198-SCT4062KW7HRTL
Ultra Librarian 3D Model Ultra Librarian SCT4062KW7HRTL CAD Model

Description

The SCT4062KW7HRTL is an N-Channel SiCFET (Silicon Carbide) MOSFET from Rohm Semiconductor.

  • Operating Temperature: Up to 175°C
  • Drain-to-Source Voltage (Vdss): 1200V
  • Continuous Drain Current (Id): 24A
  • On-Resistance: 81mOhm @ 12A, 18V
  • Gate Voltage: +21V, -4V
  • Gate Charge: 64nC @ 18V
  • Application: Automotive
