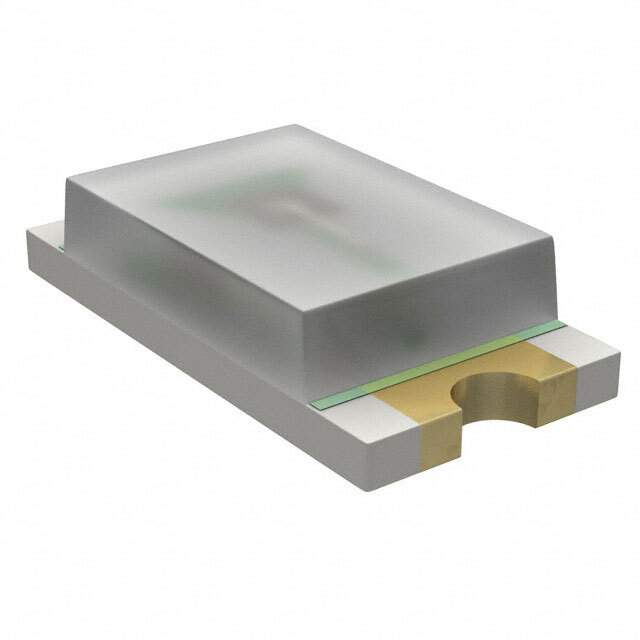

SML-D12V1WT86 Real Image
Same model may have multiple batches, images only for reference.

SML-D12V1WT86

Part No SML-D12V1WT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED DIFFUSED 1608 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Color Red
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 40mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Mounting Style SMD
Wavelength - Dominant 630nm
Manufacturer Package 0603
Supplier Device Package 1608 (0603)
Dimension 1.60mm L x 0.80mm W
Height (Maximum) 0.65mm
Manufacturer Pack Quantity 3,000
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805404-SML-D12V1WT86
Ultra Librarian 3D Model Ultra Librarian SML-D12V1WT86 CAD Model

Description

The SML-D12V1WT86 is a red LED lighting product from Rohm Semiconductor.

  • Configuration: Standard
  • Lens Transparency: Diffused
  • Forward Voltage (Vf): 2.2V
  • Current: 20mA
  • Millicandela: 40mcd
  • Wavelength-Dominant: 630nm
  • Supply and Demand Status: Balanced
