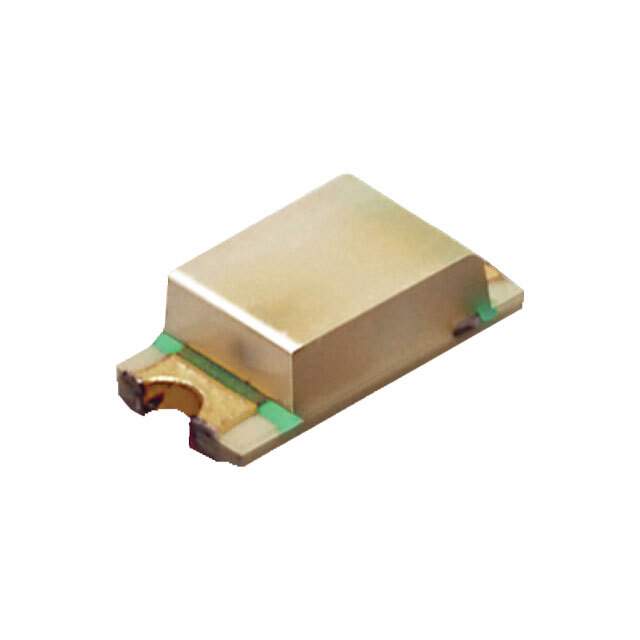

SML-D12V8WT86C Real Image
Same model may have multiple batches, images only for reference.

SML-D12V8WT86C

Part No SML-D12V8WT86C
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED 1608 SMD  /  Red 630nm LED Indication - Discrete 2.2V 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101, EXCELED™
Package Tape & Reel
Color Red
Configuration Standard
Lens Color White
Millicandela Rating 40mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 630nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D12
Other Names SML-D12V8WT86CR,SML-D12V8WT86CTR,SML-D12V8WT86CP,SML-D12V8WT86CQ,SML-D12V8WT86CN,SML-D12V8WT86CO,SML-D12V8WT86CDKR,SML-D12V8WT86CCT
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241688-SML-D12V8WT86C
Ultra Librarian 3D Model Ultra Librarian SML-D12V8WT86C CAD Model

Description

The SML-D12V8WT86C from Rohm Semiconductor is a high-quality LED indication component that is suitable for various applications.

  • Color: Red
  • Packaging: Tape & reel
  • Positions: 3,000
  • Mounting: SMD (SMT)
  • Voltage Rating: 2.2V
  • Current Rating: 20mA
  • Temperature Range: -55°C to 125°C
  • Category: Optoelectronics
  • ECCN: EAR99 compliant
  • Standard Package: 1
