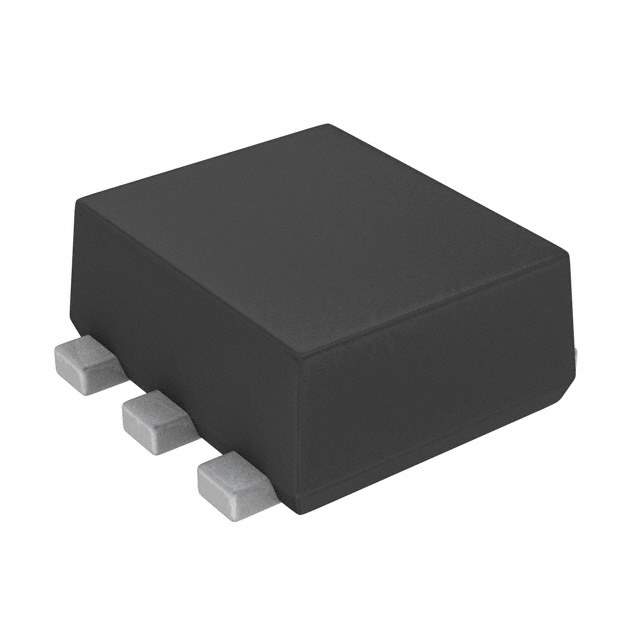

The US6M11 is a P-channel power MOSFET from Rohm Semiconductor. It is designed for switching applications, particularly in load switches and power management circuits, where a P-channel device is required. Rohm's MOSFETs are known for their efficiency and reliability.

Applications

• Load switching
• Power management circuits
• Reverse polarity protection
• DC-DC converters

Features

• P-channel MOSFET
• Low on-resistance (RDS(on))
• Surface Mount Device (SMD)
• Low gate charge (Qg)
• Halogen-free

Benefits

• Efficient Switching: The low on-resistance minimizes power losses, leading to higher efficiency in power switching applications.
• Space-Saving Design: The surface mount package enables compact and efficient PCB layouts.
• Reduced Switching Losses: The low gate charge minimizes switching losses, especially at high frequencies.
• Design Flexibility: The P-channel configuration provides flexibility in circuit design.
• Environmentally Conscious: The halogen-free construction contributes to environmentally friendly product designs.

Additional Details

The US6M11 typically features a drain-source voltage (VDSS) that determines the maximum voltage it can withstand, and a continuous drain current (ID) rating which depends on operating temperature. The low gate charge (Qg) allows for fast switching speeds and reduced switching losses. P-channel MOSFETs are often used in high-side switching configurations where they simplify the drive circuitry. This MOSFET is commonly available in a small surface-mount package, such as a SOT-23 or similar, for efficient space utilization. Consult the Rohm Semiconductor datasheet for precise electrical characteristics, thermal resistance, and package dimensions. Ensure the selected gate drive voltage is appropriate to fully enhance the MOSFET. Consider thermal management to ensure the device operates within its safe operating area, especially at higher currents and temperatures.
