Same model may have multiple batches, images only for reference.

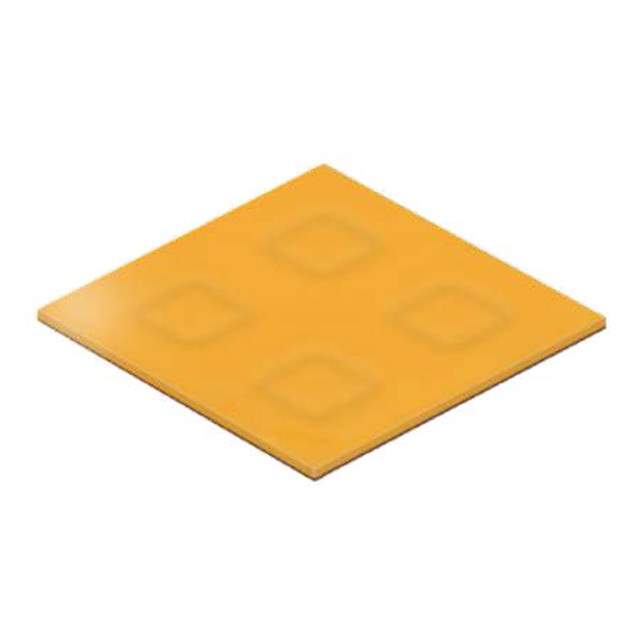

SCA9VT78HAL4V06A1F Real Image
Same model may have multiple batches, images only for reference.

SCA9VT78HAL4V06A1F

Part No SCA9VT78HAL4V06A1F
Manufacturer Samsung
Catalog LED Lighting - White
Description LED LH204A WARM WHITE 3000K SMD  /  LED Lighting series White, Warm 3000K 11.6V 150mA 120° 1414 (3535 Metric)
Datasheet
SCA9VT78HAL4V06A1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH204A
Package Tape & Reel
Product Status Obsolete
Color White, Warm
CCT (K) 3000K
Flux @ 85°C, Current - Test 183lm (165lm ~ 200lm)
Current - Test 150mA
Voltage - Forward (Vf) (Typ) 11.6V
Lumens/Watt @ Current - Test 105 lm/W
CRI (Color Rendering Index) 90
Current - Max 350mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 6-CSP
Dimension 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Thermal Resistance of Package 2.5°C/W
Other Names 1510-1612,1510-1612,1510-1612-1,1510-1612-2,1510-1612-6
Standard Package 1,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240185-SCA9VT78HAL4V06A1F
Ultra Librarian 3D Model Ultra Librarian SCA9VT78HAL4V06A1F CAD Model

Description

The LH204A series from Samsung Semiconductor, Inc. is a high-quality LED lighting solution that produces a warm white light.

  • Viewing Angle: 120 degrees
  • Forward Voltage: 11.6V
  • Maximum Current: 350mA
  • Thermal Resistance: 2.5 degrees Celsius per watt
  • Color Temperature: 3000K @ a current test of 150mA
  • Flux: 183 lumens @ 85 degrees Celsius
  • Package or Case: 1414 (3535 Metric)
  • Comes in: tape and reel
  • Ideal for: optoelectronics applications such as LED lighting
