Same model may have multiple batches, images only for reference.

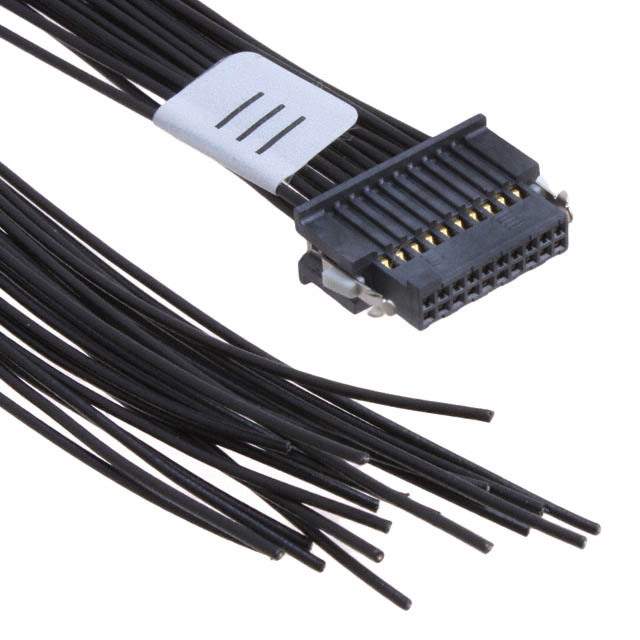

SFSD-10-28-H-10.00-SR Real Image
Same model may have multiple batches, images only for reference.

SFSD-10-28-H-10.00-SR

Part No SFSD-10-28-H-10.00-SR
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Datasheet
SFSD-10-28-H-10.00-SR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ SFSD
Package Bulk
Connector Type Socket to Individual Wire Leads
Number of Positions 20
Number of Rows 2
Pitch - Connector 0.050" (1.27mm)
Length 0.833' (254.00mm, 10.00")
Features Latch Lock, Polarizing Key
Color Black, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number SFSD-10
Other Names SAM8669,SFSD1028H1000SR
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1312313-SFSD-10-28-H-10.00-SR
Ultra Librarian 3D Model Ultra Librarian SFSD-10-28-H-10.00-SR CAD Model

Description

The Samtec Inc. 1312313-SFSD-10-28-H-10.00-SR is a rectangular cable assembly that comes with a latch lock and polarizing key feature.

  • Lock Type: Latch Lock
  • Feature: Polarizing Key
  • Connector Type: Socket to Individual Wire Leads
  • Positions: 20
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Shielding: Shielded
  • Cable Termination: Crimp
  • Cable Length: 0.833 feet (254.00mm, 10.00 inches)
  • Pitch of Connector: 0.050 inches (1.27mm)
  • ECCN: EAR99
  • Packaging: Bulk
  • HTSUS Code: 8544.42.9090
  • Series: Tiger Eye™ SFSD
  • Win Source Part Number: 1312313-SFSD-10-28-H-10.00-SR
