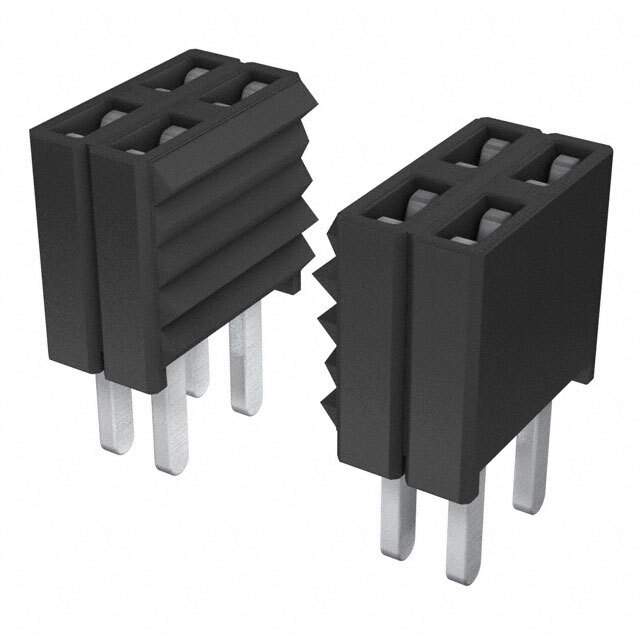

SLM-130-01-S-D Real Image
Same model may have multiple batches, images only for reference.

SLM-130-01-S-D

Part No SLM-130-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SLM-130-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SLM
Package Tube
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 60
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Rectangular
Contact Material Phosphor Bronze
Base Product Number SLM-130
Other Names SAM12854,SLM-130-01-S-D
Standard Package 15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292675-SLM-130-01-S-D
Ultra Librarian 3D Model Ultra Librarian SLM-130-01-S-D CAD Model

Description

The SLM-130-01-S-D is a high-quality connector manufactured by Samtec Inc.

This part is part of the SLM series and is a great choice for those looking for a reliable and high-quality connector. However, it is currently available in tube packaging, so you can be sure that you will be able to get your hands on it if you need it. Samtec Inc. is a trusted name in the industry and is known for manufacturing high-quality connectors, so you can be sure that you are getting a product that is built to last.
