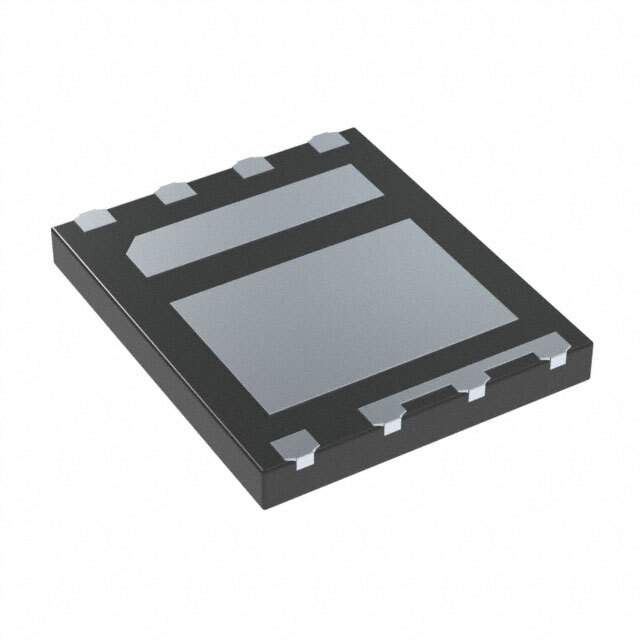

SIZ916DT-T1-GE3 Real Image
Same model may have multiple batches, images only for reference.

SIZ916DT-T1-GE3

Part No SIZ916DT-T1-GE3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 16A POWERPAIR
Datasheet
SIZ916DT-T1-GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Series TrenchFET
Packaging Reel - TR
FET Type 2 N-Channel (Half Bridge)
FET Feature Standard
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 16A, 40A
Rds On (Maximum) @ Id, Vgs 6.4 mOhm @ 19A, 10V
Vgs(th) (Maximum) @ Id 2.4V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 26nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1208pF @ 15V
Power - Max 22.7W, 100W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 6-PowerPair
Manufacturer Package 6-PowerPair
Manufacturer Homepage www.vishay.com
Win Source Part Number 734395-SIZ916DT-T1-GE3
Popularity Medium
Supply and Demand Status Limited
Family Name SiZ916DT
Introduction Date October 10, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date End of life (Obsolete)
Ultra Librarian 3D Model Ultra Librarian SIZ916DT-T1-GE3 CAD Model

Description

The Vishay 734395-SIZ916DT-T1-GE3 is a TrenchFET series 2 N-Channel (Half Bridge) FET.

  • Packaging: Reel - TR
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Power-Max: 22.7W, 100W
  • Current-Continuous Drain (Id) @ 25°C: 16A, 40A
  • Drain Source Voltage: 30V
  • Mounting Style: SMD
  • Manufacturer Package: 6-PowerPair
  • Voltage Gate-Source Threshold: 2.4V @ 250μA
  • Input Capacitance (Ciss) (Maximum) @ Vds: 1208pF @ 15V
  • Current Rating: 10A
  • Voltage Rating DC: 25V
  • Alternative Parts Cross-Reference: AON6971, AON6978, FDMS3604S
  • Supply and Demand Status: Limited
