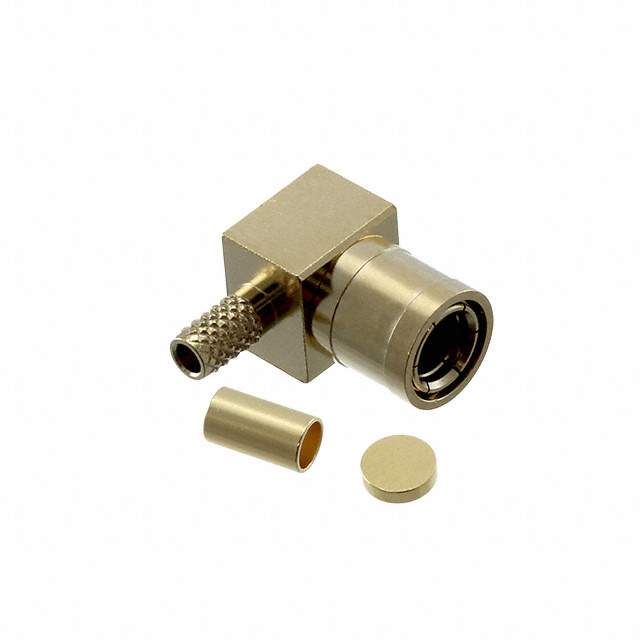

Same model may have multiple batches, images only for reference.

SMB7H-P-C-HF-RA-CA3

Name: SMB7H-P-C-HF-RA-CA3
Brand: Samtec Inc.
SKU: 1294128
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMB7H-P-C-HF-RA-CA3
Manufacturer	Samtec Inc.
Catalog	Coaxial Connectors (RF)
Datasheet	SMB7H-P-C-HF-RA-CA3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	Samtec Inc.
Series	TRUE75™ SMB7H
Package	Bulk
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Shield Termination	Crimp
Impedance	75Ohm
Mounting Type	Free Hanging (In-Line), Right Angle
Cable Group	RG-179
Fastening Type	Snap-On
Frequency - Max	4 GHz
Number of Ports	1
Housing Color	Gold
Center Contact Material	Copper Alloy
Includes	3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material	Brass
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 165°C
Voltage Rating	335 V
Base Product Number	SMB7H-P
Other Names	SMB7H-P-C-H-RA-CA3,SAM11807,SMB7H-P-C-H-RA-CA3
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Win Source Part Number	1294128-SMB7H-P-C-HF-RA-CA3
Ultra Librarian 3D Model	Ultra Librarian SMB7H-P-C-HF-RA-CA3 CAD Model

Alternative Products

Description

The Win Source Part Number for this product is 1294128-SMB7H-P-C-HF-RA-CA3.

Win Source Part Number: 1294128-SMB7H-P-C-HF-RA-CA3
Connector Type: Coaxial connector (RF)
Series: TRUE75™ SMB7H series
Type: Snap-on plug with a female socket
Voltage Rating: 335 V
Supply and Demand Status: Balanced
Impedance: 75Ohm
Mounting: Free hanging (in-line), right angle
Body Material: Brass
Body Finish: Gold finish
Center Contact Material: Copper alloy
Center Contact Plating: Gold plating
Package: Bulk
Contact Termination: Solder
