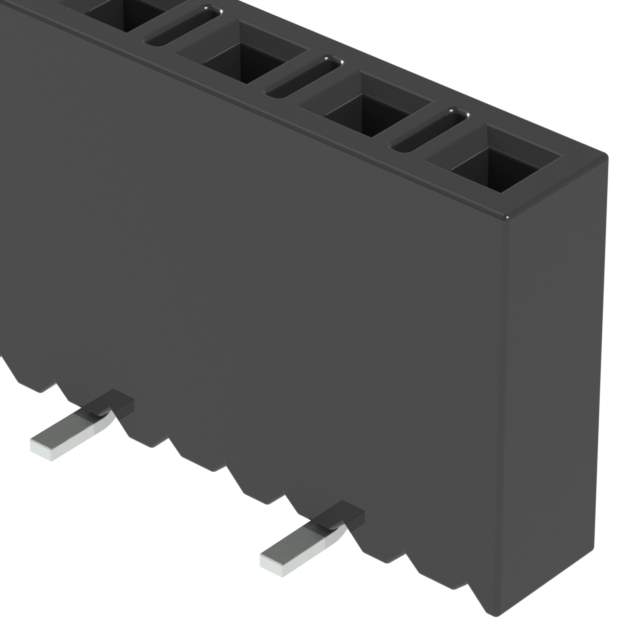

The SSM series receptacle connector from Samtec Inc. is a rectangular connector with a pass-through feature, making it ideal for board-to-board or cable applications.

• Positions: Eight positions loaded with female socket contacts.
• Insulation Material: Liquid crystal polymer (LCP).
• Insulation Color: Black color finish.
• Contact Material: Phosphor bronze with gold finish for mating and tin finish for post.
• Voltage Rating: 405VAC and 572VDC.
• Mounting: Mounted on the surface using SMD (SMT) mounting.
• Fastening Type: Push-pull.
• Operating Temperature: Operates in a temperature range of -55°C to 125°C.
• Current Rating: 5.2A per contact.
• Packaging: Tape and reel packaging, and the standard package contains 350 connectors.
