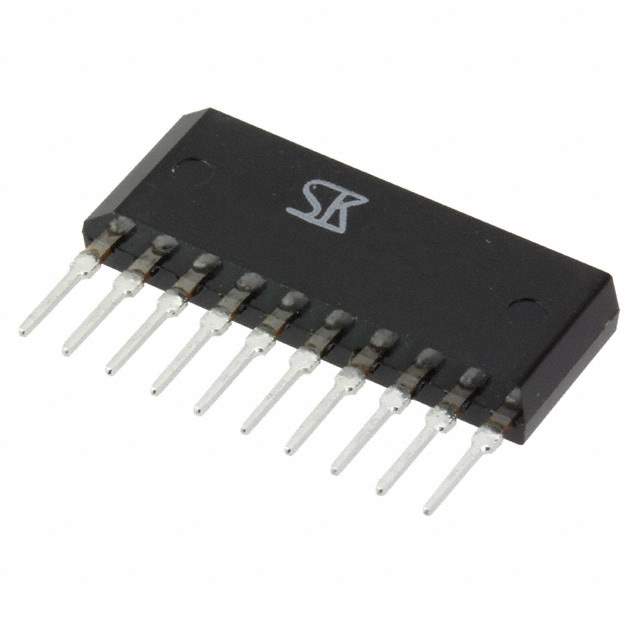

The STA402 is a monolithic integrated circuit designed for use in audio amplifier applications, specifically as a bridge-tied load (BTL) driver. Manufactured by Sanken, this device is known for its robust performance and efficiency in delivering high-power audio output with minimal external components. It simplifies the design process for audio systems by integrating multiple functions into a single chip.

Applications:

• Car audio amplifiers
• Home theater systems
• Powered speakers
• Audio/Video receivers
• General-purpose audio amplification

Features:

• High output power capability: Delivers significant audio power suitable for demanding applications.
• Built-in protection circuits: Includes overvoltage, overcurrent, and thermal shutdown protection to ensure device reliability and prevent damage under fault conditions.
• Bridge-tied load (BTL) configuration: Allows for increased output power compared to single-ended amplifiers, maximizing efficiency.
• Minimal external components: Reduces the overall system cost and complexity by integrating many functions internally.
• Low distortion: Provides high-fidelity audio reproduction with minimal harmonic distortion.

Benefits:

• Improved audio performance: Delivers clean and powerful audio output for enhanced listening experience.
• Enhanced system reliability: Protection features safeguard the device from electrical and thermal stresses, ensuring long-term reliability.
• Simplified design: Reduces the design effort and time by integrating multiple functions into a single IC.
• Cost-effective solution: Minimizes the need for external components, resulting in lower overall system cost.
• Compact design: Enables smaller and more efficient audio amplifier designs.

Additional Details:

The STA402 operates on a specified voltage range, making it compatible with standard power supplies used in audio equipment. Its thermal resistance characteristics allow for efficient heat dissipation, enabling stable operation even at high power levels. The device is typically packaged in a multi-lead package for easy mounting and connection to external circuitry. Detailed specifications, including voltage gain, frequency response, and distortion characteristics, are available in the manufacturer's datasheet.
