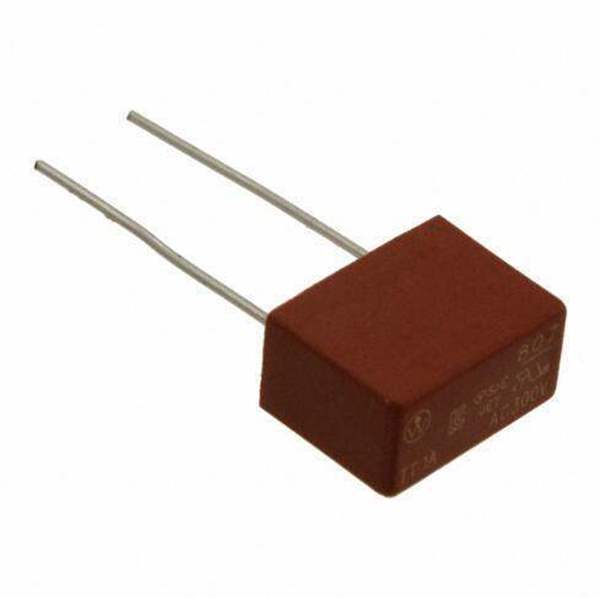

80714000000 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

80714000000

Part No 80714000000
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 4A 300VAC RADIAL
Datasheet
80714000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Littelfuse Inc.
Category Circuit Protection Fuses
Part Status Active
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Voltage Rating - AC 300 V
Response Time Slow Blow
Package / Case Radial, Box
Approval Agency cULus, KC, PSE/JET
Operating Temperature -40°C ~ 125°C
Size / Dimension 0.488" L x 0.252" W x 0.362" H (12.40mm x 6.40mm x 9.20mm)
DC Cold Resistance 0.0174 Ohms
Win Source Part Number WS1304279-80714000000
Ultra Librarian 3D Model Ultra Librarian 80714000000 CAD Model

Description

The 807 Series is a time-lag type subminiature fuse designed for overcurrent protection.
