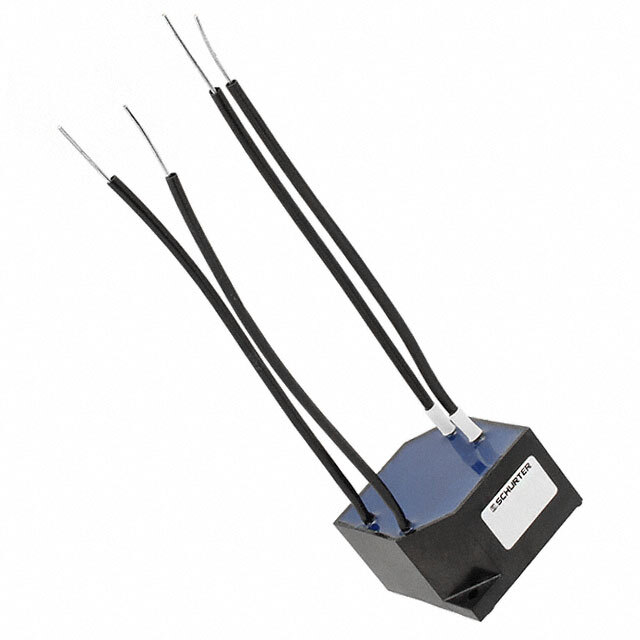

DKLP-0331-0520

Part No DKLP-0331-0520
Manufacturer Schurter Inc.
Catalog Common Mode Chokes
Description CMC 5A 3LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Lines 3
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - DC 760V
Voltage Rating - AC 540V
Temperature Range - Operating -25°C ~ 100°C
Approval Agency UR
Mounting Type Through Hole
Size / Dimension 3.150" L x 3.150" W (80.00mm x 80.00mm)
Case / Package Nonstandard
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530507-DKLP-0331-0520
Ultra Librarian 3D Model Ultra Librarian DKLP-0331-0520 CAD Model
