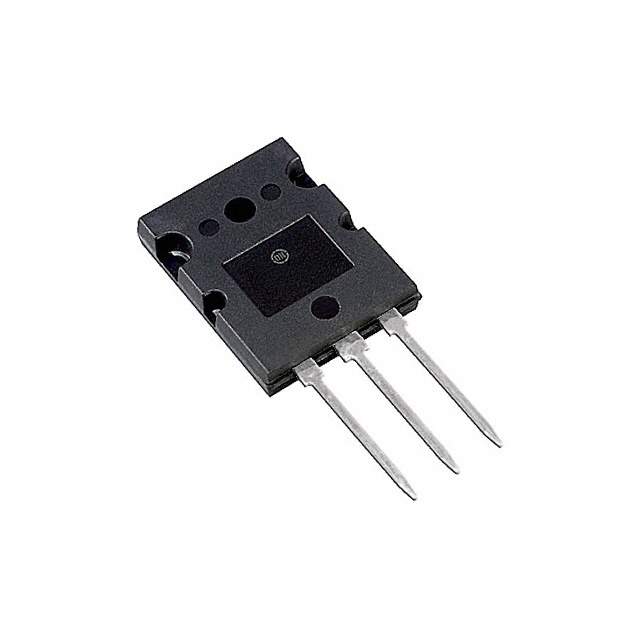

GPA042A100L-ND Real Image
Same model may have multiple batches, images only for reference.

GPA042A100L-ND

Part No GPA042A100L-ND
Manufacturer SemiQ
Catalog IGBTs - Single
Description IGBT 1000V 60A 463W TO264 / IGBT NPT and Trench 1000 V 60 A 463 W Through Hole TO-264
Datasheet
GPA042A100L-ND Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr SemiQ
Package Tube
Product Status Obsolete
IGBT Type NPT and Trench
Voltage - Collector Emitter Breakdown (Max) 1000 V
Current - Collector (Ic) (Max) 60 A
Current - Collector Pulsed (Icm) 120 A
Vce(on) (Max) @ Vge, Ic 2.9V @ 15V, 60A
Power - Max 463 W
Switching Energy 13.1mJ (on), 6.3mJ (off)
Input Type Standard
Gate Charge 405 nC
Td (on/off) @ 25°C 230ns/1480ns
Test Condition 600V, 60A, 50Ohm, 15V
Reverse Recovery Time (trr) 465 ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-264-3, TO-264AA
Supplier Device Package TO-264
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 1560-1225-1,1560-1225-1-ND,1560-1225-2,1560-1225-2INACTIVE,1560-1225-5,1560-1225-2-ND
Standard Package 25
Win Source Part Number 1060983-GPA042A100L-ND
Ultra Librarian 3D Model Ultra Librarian GPA042A100L-ND CAD Model

Description

The 1060983-GPA042A100L-ND is a discrete semiconductor product that is used in various electronic applications.

  • Product Type: IGBT (insulated-gate bipolar transistor)
  • Manufacturer: SemiQ
  • Win Source Part Number: 1060983-GPA042A100L-ND
  • IGBT Type: NPT and Trench
  • Voltage Collector Emitter Breakdown: 1000 V
  • Current Collector: 60 A
  • Switching Energy (On): 13.1mJ
  • Switching Energy (Off): 6.3mJ
  • Mounting Type: Through-hole
  • Package/Case: TO-264-3, TO-264AA
