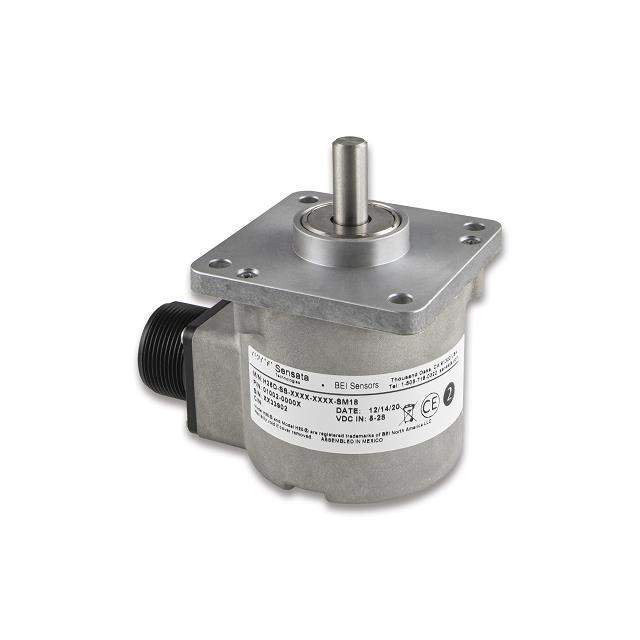

01005-1715 Real Image
Same model may have multiple batches, images only for reference.

01005-1715

Part No 01005-1715
Manufacturer Sensata-BEI Sensors
Catalog Encoders
Description ROTARY ENCODER OPTICAL 10800PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders - Industrial
Mfr Sensata-BEI Sensors
Series H25
Package Box
Product Status Active
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 10800
Voltage - Supply 5V ~ 28V
Actuator Type Shaft
Detent No
Built in Switch No
Mounting Type Chassis Mount
Orientation User Selectable
Termination Style Connector
Rotational Life (Cycles Min) 200M
Base Product Number 01005
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8543.70.4500
California Prop 65 Warning Information
Win Source Part Number 917684-01005-1715
Ultra Librarian 3D Model Ultra Librarian 01005-1715 CAD Model

Description

The H25 series industrial encoder is a high-quality component designed for precise motion control applications. With a termination style of connector and a package type of box, this encoder offers easy installation and reliable performance.

  • Termination: connector
  • Package: box
  • Output: quadrature with index (incremental)
  • Actuator: shaft
  • Encoder Type: optical
  • Pulses per Revolution: 10800
  • Rotational Life: 200 million cycles minimum
  • Voltage Supply: 5V to 28V
  • Mounting: chassis mount
  • Manufacturer: Sensata-BEI Sensors
