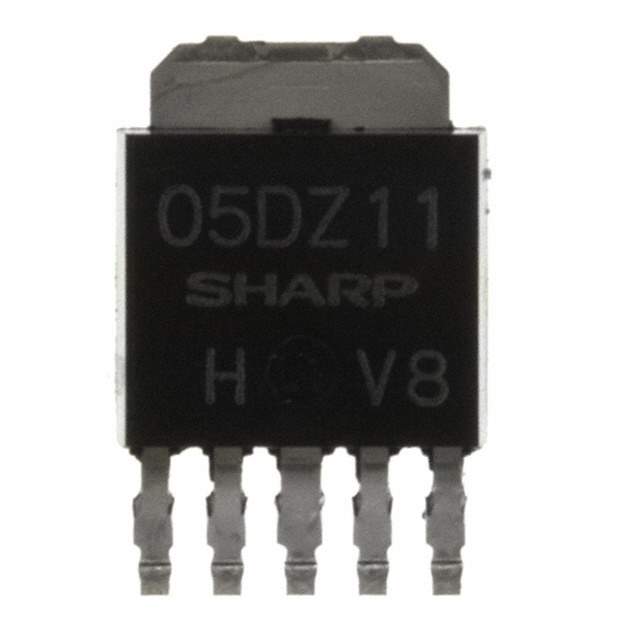

PQ05DZ11J00H Real Image
Same model may have multiple batches, images only for reference.

PQ05DZ11J00H

Part No PQ05DZ11J00H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 1A SC63
Datasheet
PQ05DZ11J00H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 10mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 1089869-PQ05DZ11J00H
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ05DZ11J00H CAD Model

Description

This electronic component is an integrated circuit categorized under the obsolete (EOL) status.

  • Win Source Part Number: 1089869-PQ05DZ11J00H
  • Manufacturer: Sharp Microelectronics
  • Output Voltage: Fixed, 5V
  • Maximum Output Current: 1A
  • Package: SC-63
  • Maximum Input Voltage: 24V
  • Temperature Range: -20°C to 80°C
  • Protection Features: Over-Current, Over-Temperature
