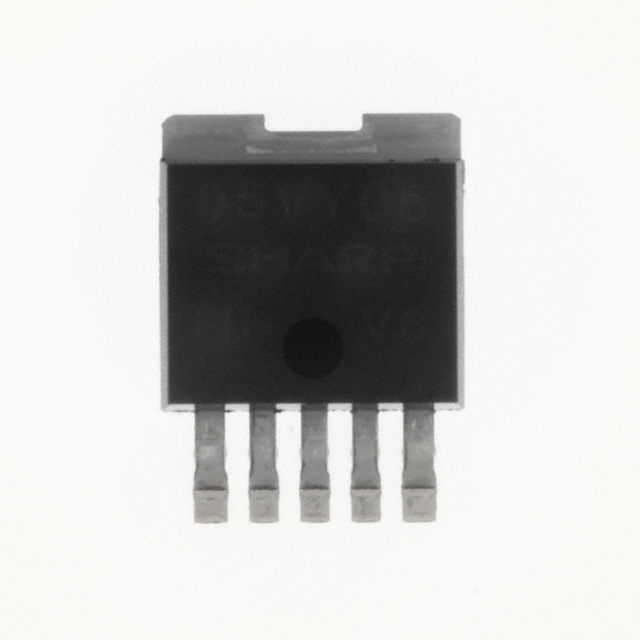

PQ05VY053ZZH Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ05VY053ZZH

Part No PQ05VY053ZZH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 5A TO263
Datasheet
PQ05VY053ZZH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 7V
Nominal Output Voltage (Min/Fixed) 1.5V
Maximum Output Voltage 5V
Dropout Voltage-Max 0.5V @ 5A
Output Current 5A
Operating Supply Current 10mA
PSRR 70dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Adjustable
Output Voltage 1.5 V to 5 V
Mounting SMD (SMT)
Case / Package TO-263
Win Source Part Number 134806-PQ05VY053ZZH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PQ05VY053ZZH CAD Model

Description

The PQ05VY053ZZH is an integrated circuit (IC) manufactured by Sharp Microelectronics.

  • Type: Positive adjustable regulator
  • Maximum Output Current: 5A
  • Output Voltage: 1.5V to 5V
  • Suitable for: Use in various electronic devices, such as power supplies, battery chargers, and LED drivers.
  • Status: Obsolete (EOL)
  • Benefit: Provides high-quality performance and durability, making it a reliable choice for electronic manufacturers.
