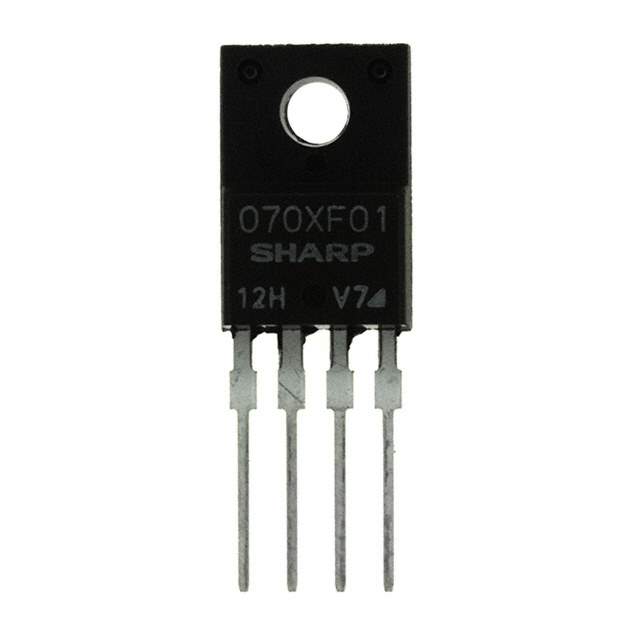

PQ070XF01SZH Real Image
Same model may have multiple batches, images only for reference.

PQ070XF01SZH

Part No PQ070XF01SZH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description TO-220 Type,Low Voltage Operation Low Power-Loss Voltage Regulators
Datasheet
PQ070XF01SZH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 10V
Output Voltage 1.5V
Output Voltage MAX 7V
Voltage Dropout (Maximum) 0.5V @ 500mA
Output Current 1A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Protection Features Over Current, Over Temperature
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package TO-220-4
Manufacturer Package TO-220-4
Win Source Part Number 1239262-PQ070XF01SZH
Manufacturer Homepage sharp-world.com/
Popularity Medium
Supply and Demand Status Limited
Family Name PQ070XF01SZ
Introduction Date December 17, 2006
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian PQ070XF01SZH CAD Model

Description

The PQ070XF01SZH from Sharp Microelectronics is a positive adjustable output type regulator with a TO-220-4 package.

  • Output Type: Positive Adjustable
  • Package: TO-220-4
  • Maximum Output Voltage: 7V
  • Voltage Input Maximum: 10V
  • Voltage Dropout: 0.5V @ 500mA
  • Output Current: 1A
  • Category: Integrated Circuits (ICs)
  • PSRR: 60dB (120Hz)
  • Protection Features: Over Current and Over Temperature
  • Operating Temperature Range: -40°C ~ 85°C
  • Popularity: Low to Medium
  • Alternative Parts: TS1117SCZ, TS1117SCM, TS1117CS RL
