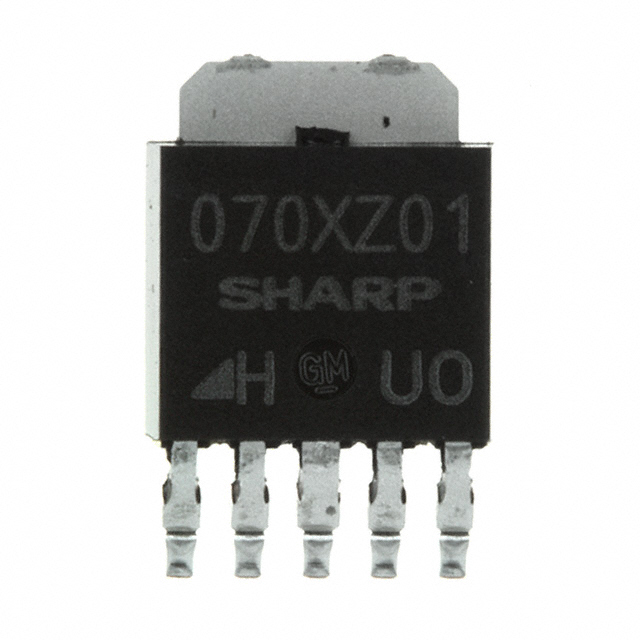

Same model may have multiple batches, images only for reference.
PQ070XZ01ZPH Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ070XZ01ZPH

Part No PQ070XZ01ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1A SC63
Datasheet
PQ070XZ01ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 1.5V
Maximum Output Voltage 7V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Adjustable
Output Voltage 1.5 V to 7 V
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 005121-PQ070XZ01ZPH
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PQ070XZ01ZPH CAD Model

Description

The Sharp Microelectronics electronic component is an obsolete product that is suitable for various applications.

  • Win Source Part Number: 005121-PQ070XZ01ZPH
  • Category: Integrated Circuits
  • Supply and Demand Status: sufficient
  • Regulator Topology: positive adjustable
  • Number of Regulators: 1
  • Output Type: adjustable
  • Output Current: 1A
  • Output Voltage: 1.5V to 7V
  • Operating Supply Current: 2mA
  • PSRR: 60dB (120Hz)
  • Protection Features: over current and over temperature
