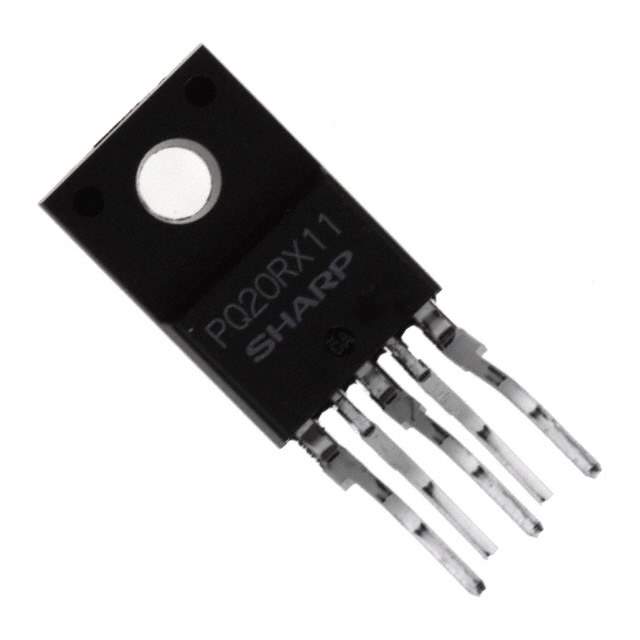

PQ20RX11 Real Image
Same model may have multiple batches, images only for reference.

PQ20RX11

Part No PQ20RX11
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1A TO220-5
Datasheet
PQ20RX11 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 3V
Maximum Output Voltage 20V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 8mA
PSRR 45dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Adjustable
Output Voltage 3 V to 20 V
Mounting Through Hole
Case / Package TO-220-5
Win Source Part Number 122389-PQ20RX11
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ20RX11 CAD Model

Description

The Sharp Microelectronics 122389-PQ20RX11 is an adjustable voltage regulator that is used in various electronic devices. It is an obsolete component with a balanced supply and demand status. This component is known for its reliable performance and is widely used in various electronic devices.
