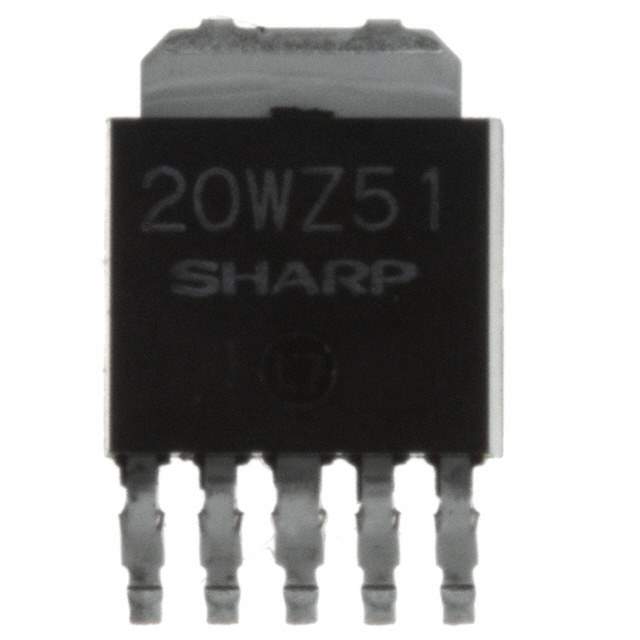

PQ20WZ51J00H Real Image
Same model may have multiple batches, images only for reference.

PQ20WZ51J00H

Part No PQ20WZ51J00H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.5A SC63
Datasheet
PQ20WZ51J00H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 3V
Maximum Output Voltage 20V
Dropout Voltage-Max 0.5V @ 300mA
Output Current 500mA
Operating Supply Current 8mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Adjustable
Output Voltage 3 V to 20 V
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 062023-PQ20WZ51J00H
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ20WZ51J00H CAD Model

Description

The Sharp Microelectronics 062023-PQ20WZ51J00H is an integrated circuit that is currently obsolete (EOL).

  • Packaging: This component comes in a tube/rail packaging.
  • Mounting: Has an SMD (SMT) mounting.
  • Topology: It has a positive adjustable regulator topology with one regulator.
  • Output Type: The output type is adjustable.
  • Output Current: Has an output current of 500mA.
  • Output Voltage: Has an output voltage of 3 V to 20 V.
  • Maximum Input Voltage: Is 24V.
  • Nominal Output Voltage: Has a nominal output voltage of 3V.
  • Dropout Voltage-Max: 0.5V @ 300mA.
  • Operating Supply Current: Is 8mA.
  • PSRR: 60dB (120Hz).
  • Maximum Output Voltage: Is 20V.
  • Protection Features: Over current and over temperature.
