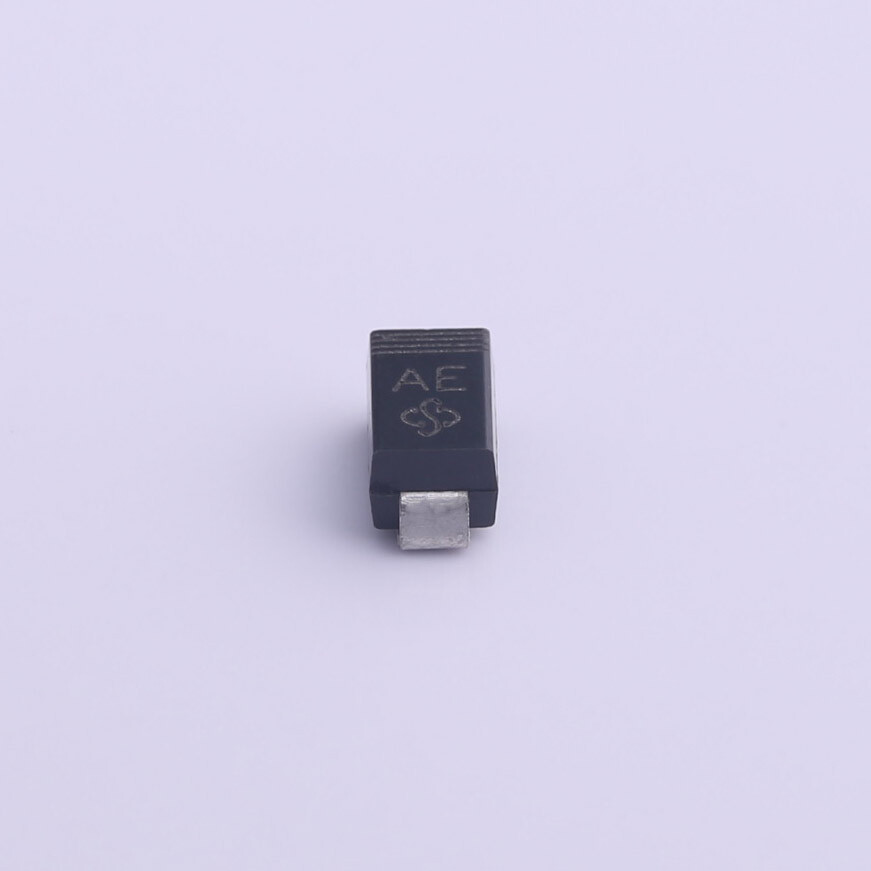

Same model may have multiple batches, images only for reference.

SMAJ5.0A

Name: SMAJ5.0A
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1329896
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMAJ5.0A
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	TVS - Diodes
Description	5V 6.4V 9.2V 43.5A SMA(DO-214AC)
Datasheet	SMAJ5.0A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1329896-SMAJ5.0A
Package	Tape & Reel (TR)
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown (Min)	6.4V
Voltage - Clamping (Max) @ Ipp	9.2V
Current - Peak Pulse (10/1000µs)	43.5A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Operating Temperature	-65°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Package	Tape & Reel (TR);Cut Tape (CT)
Power Line Protection	Yes
Operating Temperature	-55°C ~ 150°C
Supplier Device Package	DO-214AC (SMAJ)
Operating Temperature	-55°C ~ 150°C (TJ)
Current - Peak Pulse (10/1000µs)	43.48A
Supplier Device Package	SMAJ (DO-214AC)
Package	Strip
Package / Case	DO-214AC (SMA)
Applications	Telecom
Supplier Device Package	SMA
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6.7V (Typ)
Supplier Device Package	DO-214AC
Ultra Librarian 3D Model	Ultra Librarian SMAJ5.0A CAD Model
