Same model may have multiple batches, images only for reference.

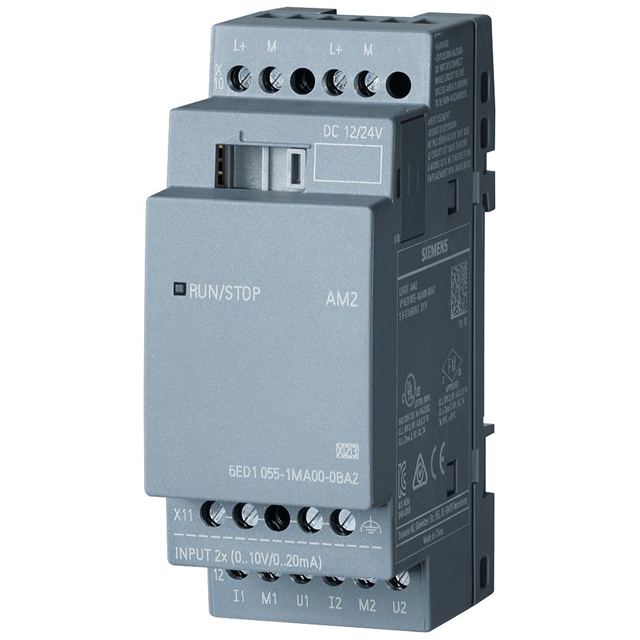

6ED1055-1MA00-0BA2 Real Image
Same model may have multiple batches, images only for reference.

6ED1055-1MA00-0BA2

Part No 6ED1055-1MA00-0BA2
Manufacturer Siemens
Catalog Industrial Equipment
Description LOGO! AM2 expansion module, PS/: 12/24 V DC, 2 AI, 0-10 V or 0/4-20 mA for LOGO! 8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Module
Current Rating 20 mA
Depth 58 mm
Length 90 mm
Maximum Operating Temperature 55 °C
Min Operating Temperature 0 °C
Mount DIN Rail
Number of Inputs 2
Operating Supply Voltage 24 V
REACH SVHC No SVHC
RoHS Compliant
Width 35.5 mm
Win Source Part Number 1007975-6ED1055-1MA00-0BA2
Categories Industrial Equipment
Manufacturer Siemens
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 6ED1055-1MA00-0BA2 CAD Model

Description

The 6ED1055-1MA00-0BA2 is an industrial equipment module manufactured by Siemens.

  • Current Rating: 20 mA
  • Supply Voltage: 24 V
  • Length: 90 mm
  • Width: 35.5 mm
  • Depth: 58 mm
  • Mounting Type: SMD (SMT)
  • Mount: DIN Rail
  • Operating Temperature Range: 0 °C to 55 °C
  • Win Source Part Number: 1007975-6ED1055-1MA00-0BA2
