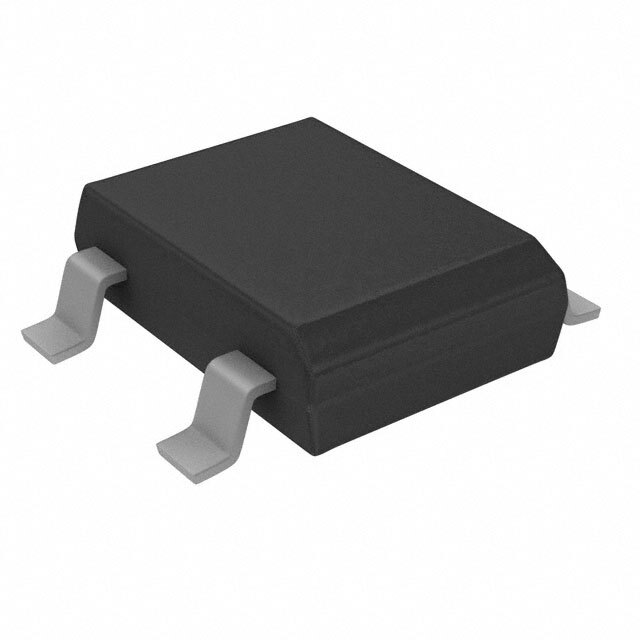

Same model may have multiple batches, images only for reference.
DB153S SMC Diode Solutions
Same model may have multiple batches, images only for reference.

DB153S

Part No DB153S
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 200V 1.5A DB-S
Datasheet
DB153S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DB-S
Base Product Number DB153
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367786-DB153S
Ultra Librarian 3D Model Ultra Librarian DB153S CAD Model

Description

The DB153S is a surface mount bridge rectifier diode from SMC Diode Solutions.

  • Product Name: DB153S
  • Manufacturer: SMC Diode Solutions
  • Series: DB-S
  • Application: Rectification
  • Package: 4-SMD, gull-wing
  • Mounting: Surface Mount
  • Average Rectified Current (Io): 1.5A
  • Forward Voltage Drop (Vf) @ 1.5A: 1.1V
  • Reverse Leakage Current @ 200V: 5µA
  • Peak Reverse Voltage: 200V
  • Operating Temperature Range: -55°C to 150°C
  • Compliance: REACH
  • ECCN: EAR99
