Same model may have multiple batches, images only for reference.

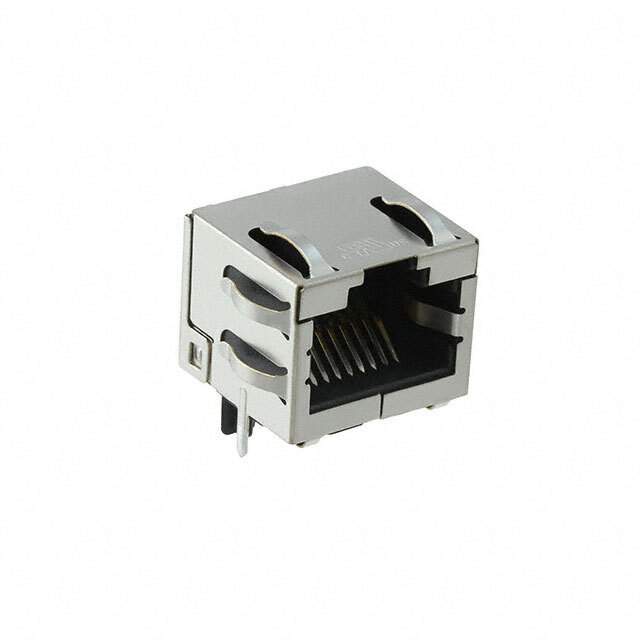

SS-60300-002 Real Image
Same model may have multiple batches, images only for reference.

SS-60300-002

Part No SS-60300-002
Manufacturer Stewart Connector
Catalog Modular Connectors
Description CAT6A SHIELDED RIGHT ANGLE JACK / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat6a
Datasheet
SS-60300-002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks
Mfr Stewart Connector
Series 60300
Package Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Ratings Cat6a
Features Board Guide
LED Color Does Not Contain LED
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Thermoplastic
Base Product Number SS-60300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 380-1326
Standard Package 1,176
Win Source Part Number 1096148-SS-60300-002
Ultra Librarian 3D Model Ultra Librarian SS-60300-002 CAD Model

Description

The SS-60300-002 is a jack connector from Stewart Connector that can be used for high-speed Ethernet applications.

  • Orientation: 90-degree angle (right)
  • Board Guide: Yes
  • Rows: Single
  • Shielded: With EMI finger
  • Contacts: 8p8c (RJ45, Ethernet)
  • Rated For: Cat6a applications
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Housing Material: Thermoplastic
  • Package: Tray
  • Standard Package: 1,176
