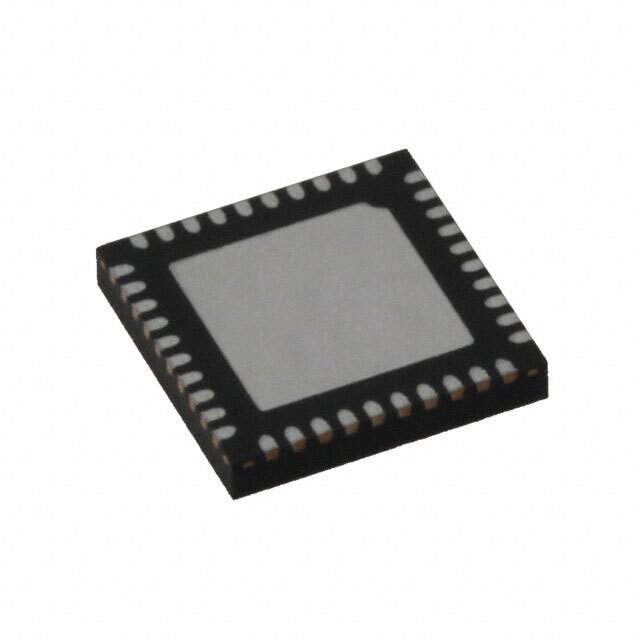

The L6756D from STMicroelectronics is a highly integrated, advanced voltage regulator designed to deliver exceptional performance for modern computing applications. This device leverages STMicroelectronics' expertise in power management technology to provide a solution that meets the stringent requirements of today's energy-efficient and power-sensitive designs.

Key Features

• High Efficiency: The L6756D incorporates a synchronous step-down converter topology, which ensures high efficiency across a wide range of load conditions, reducing power loss and improving overall system performance.
• Flexibility: With its adjustable output voltage, the regulator can cater to a variety of system voltages, making it a versatile choice for different applications.
• Thermal Management: The device is designed with an integrated thermal shutdown feature, which protects the system from overheating, enhancing reliability and longevity.
• Power Good Output: This function provides a status signal to the host system, indicating that the output voltage is within the specified range and the system is ready to operate.

Applications

The L6756D is suitable for a broad range of applications, including:

• Desktop and Notebook PCs
• Servers and Workstations
• Embedded Systems
• Networking Equipment
• Telecommunications Infrastructure

Technical Specifications

The L6756D operates over a wide input voltage range and features a programmable switching frequency, enabling designers to optimize the regulator for their specific application requirements. The device also includes a range of protection features such as overcurrent protection, short-circuit protection, and under-voltage lockout, which contribute to the safe operation of the end equipment.

For detailed technical specifications, application notes, and additional resources, designers and engineers are encouraged to visit the official STMicroelectronics website or contact their local STMicroelectronics sales office.
