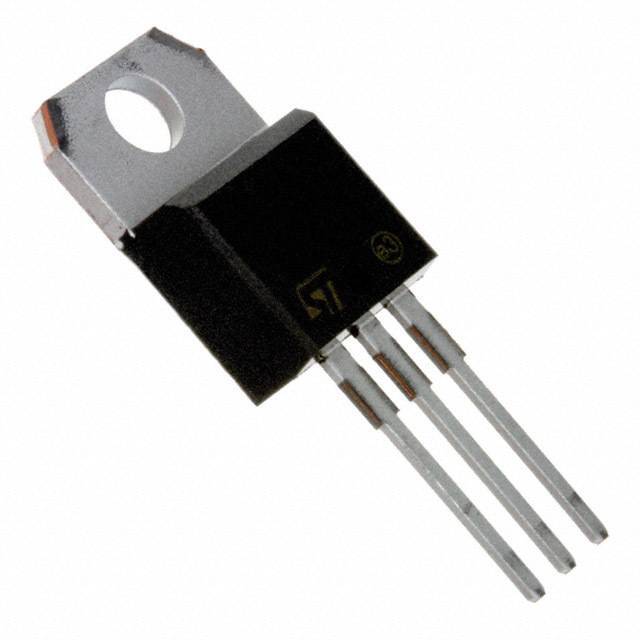

The L7812CV-DG from STMicroelectronics is a robust positive voltage regulator designed to offer a fixed output of 12V with a current capacity of up to 1.5A. This linear voltage regulator is part of the widely acclaimed L78 series, renowned for their reliability and ease of use in a wide array of electronic applications.

Key Features

• Output Voltage: Fixed output of 12V, which is ideal for standard 12V operations.
• Output Current: Capable of delivering up to 1.5A, making it suitable for moderate power applications.
• Thermal Overload Protection: Integrated thermal shutdown prevents damage from overheating, ensuring long-term reliability.
• Short Circuit Protection: The device includes built-in short circuit protection that safeguards it and the connected load from potential damage.
• Output Transition SOA Protection: Provides safe operating area protection, enhancing the longevity of the regulator under various load conditions.
• No External Components Required: The L7812CV-DG operates effectively without the need for additional components, simplifying design and reducing system complexity.

Applications

The L7812CV-DG is versatile and can be used in a variety of applications, including:

• Power supplies for consumer electronics
• Automotive electronics
• Embedded systems
• Linear power regulators for domestic and industrial applications

Product Specifications

The device is encapsulated in a TO-220 package, which is known for its ability to dissipate heat effectively. It operates within a junction temperature range of -40°C to 125°C, making it suitable for use in challenging thermal environments. The L7812CV-DG also boasts a low dropout voltage, ensuring more efficient operation even when input voltage levels are close to the output voltage.

Quality and Reliability

STMicroelectronics is a global leader in semiconductor solutions, and the L7812CV-DG reflects the company's commitment to high-quality standards. It is designed to meet rigorous international standards, ensuring reliability and performance for critical applications.
