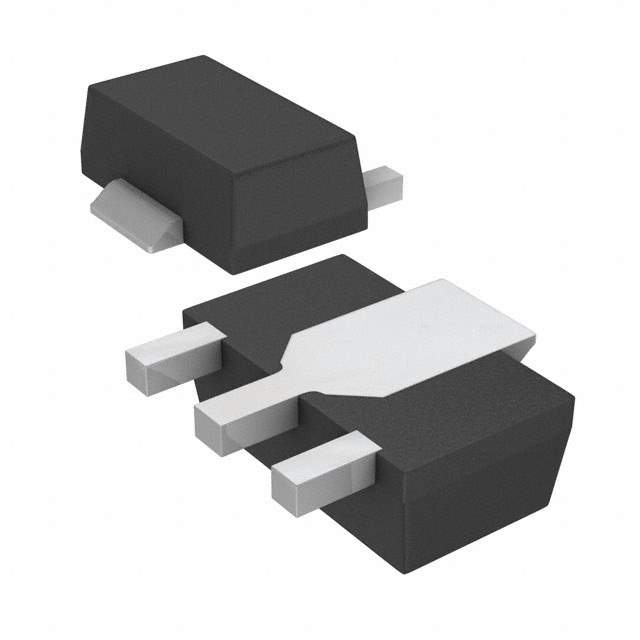

The LDK220U33R is a high-performance, low-dropout linear voltage regulator produced by STMicroelectronics, a leader in semiconductor solutions. This regulator is designed to deliver a fixed output voltage of 3.3V with an input voltage range from 2.5V to 5.5V, making it an ideal choice for battery-powered devices and low-voltage applications. With an output current capability of up to 200mA, the LDK220U33R is well-suited for supplying power to microcontrollers, sensors, and other sensitive electronic components.

Key Features

• Low Dropout Voltage: The LDK220U33R features a very low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage, thereby maximizing battery life in portable applications.
• High Output Accuracy: This voltage regulator provides a precise output voltage with a high accuracy level, which is critical for powering sensitive electronic circuits.
• Low Ground Current: The low ground current of the LDK220U33R contributes to the overall efficiency of the system by minimizing power dissipation.
• Stability with Low ESR Capacitors: The LDK220U33R remains stable with low ESR ceramic capacitors, which reduces the size and cost of the external components required.
• Thermal Protection: The device includes thermal shutdown protection that safeguards it from damage due to overheating.
• Short-Circuit Protection: Built-in short-circuit protection ensures that the LDK220U33R and the device it powers are protected in the event of a fault condition.

Applications

The LDK220U33R is versatile and can be used in a wide range of applications. It is particularly well-suited for portable and battery-powered devices such as:

• Mobile phones and personal digital assistants (PDAs)
• Portable media players and audio devices
• Wireless communication systems
• Handheld instruments

With its combination of features, the LDK220U33R from STMicroelectronics offers a reliable and efficient solution for a variety of power management requirements.
