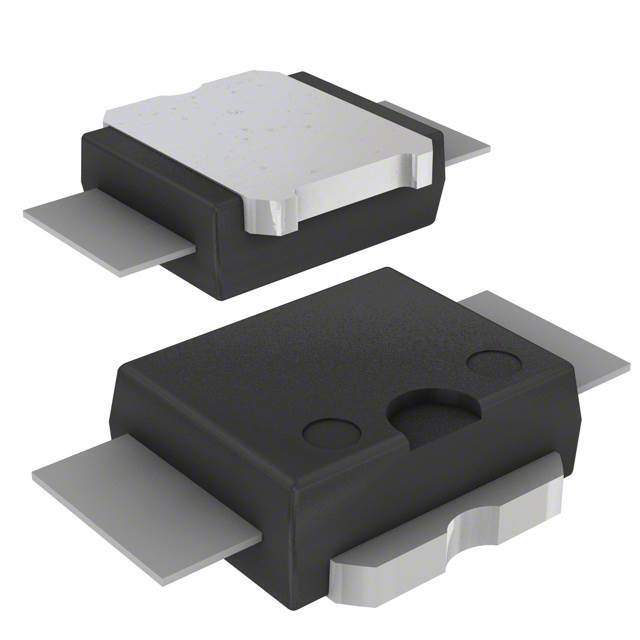

The PD57006STR-E is a state-of-the-art RF power transistor from STMicroelectronics, designed to deliver exceptional performance for a wide range of applications. This device is part of ST's LDMOS family, which is renowned for its high power efficiency and reliability. The PD57006STR-E is particularly suited for high-frequency operations and is commonly used in RF power amplifiers for telecommunications, industrial, and military applications.

Key Features

• High Operating Frequency: The PD57006STR-E operates efficiently at high frequencies, making it ideal for RF applications that require fast switching and high-frequency signal amplification.
• Thermal Performance: With an excellent thermal design, the transistor is capable of maintaining stability and performance even under high temperature conditions, ensuring long-term reliability.
• Power Gain: It offers a high power gain, which allows for significant signal amplification without the need for multiple stages, simplifying the overall circuit design.
• Efficiency: The LDMOS technology used in the PD57006STR-E provides high efficiency, which reduces power loss and improves the overall energy consumption of the system it is used in.
• Durability: Manufactured with robust materials and built to withstand tough conditions, this transistor is durable and has a long operational lifespan.

Applications

The versatility of the PD57006STR-E allows it to be used in various applications, including but not limited to:

• Base station transceivers for mobile communication
• Broadband wireless systems
• Industrial, scientific, and medical (ISM) applications
• Military communications equipment
• RF energy applications

Technical Specifications

The PD57006STR-E is designed to meet rigorous technical standards. Some of its key specifications include:

• Supply Voltage: Typically 28V
• Output Power: Capable of delivering high output power to drive demanding loads
• Package: Housed in a robust and compact surface-mount package for easy integration into circuit designs

In conclusion, the PD57006STR-E from STMicroelectronics is an excellent choice for designers looking for a high-performance RF power transistor that combines efficiency, power gain, and thermal stability in a compact package.
