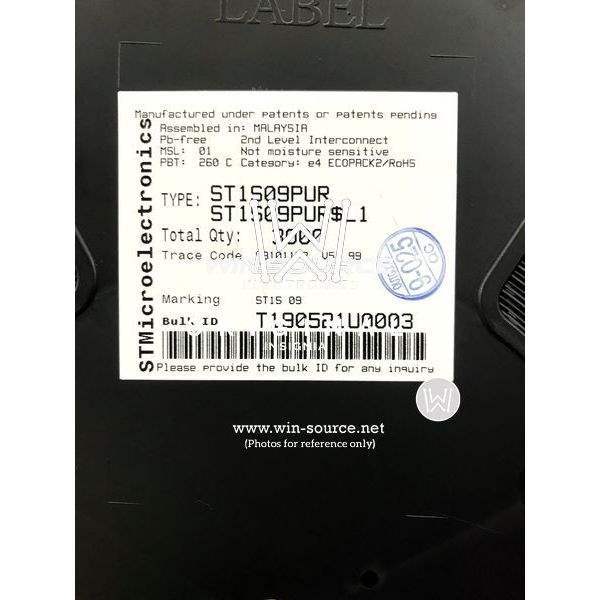

Product Overview: ST1S09PUR DFN6 by STMicroelectronics

The ST1S09PUR is a highly efficient, synchronous step-down DC-DC converter manufactured by STMicroelectronics, a leader in semiconductor solutions. This compact power management integrated circuit is designed to deliver a fixed output voltage with outstanding accuracy while maintaining a high level of energy efficiency. It is housed in a small DFN6 (3x3mm) package, making it an excellent choice for space-constrained applications.

With an input voltage range of 2.5V to 5.5V, the ST1S09PUR is versatile enough to be powered by a variety of sources, including single-cell lithium-ion batteries, which makes it particularly suitable for portable and battery-operated devices. The device can supply an output current up to 1.5A, ensuring sufficient power for a wide range of applications.

The ST1S09PUR features an internal synchronous rectifier which significantly improves efficiency by reducing the voltage drop and power loss associated with diode rectifiers. This not only saves power but also minimizes the heat generated, thereby enhancing the reliability and lifespan of the device and the overall system.

One of the key benefits of this DC-DC converter is its low quiescent current, which is critical for extending battery life in portable applications. The ST1S09PUR also includes a range of protective features such as thermal shutdown, overcurrent protection, and under-voltage lockout, which safeguard the device and the load from various electrical anomalies.

Furthermore, the ST1S09PUR provides excellent load and line regulation, ensuring stable operation even with varying input voltages and load conditions. The device also supports a high switching frequency, which allows for the use of small external components, reducing the overall solution size and cost.

In summary, the ST1S09PUR DFN6 from STMicroelectronics is a highly reliable and efficient solution for power conversion in portable electronics, offering a combination of performance, protection features, and compact size that make it an ideal choice for designers looking to optimize their power management systems.
