Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Packaging Reel package
Part Status Obsolete(EOL)
Type DC DC Regulator
Topology Step-Down (Buck), Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Voltage Supply MIN 2.7V
Voltage Supply MAX 5.5V
Voltage - Output 2.5 V ~ 5.3 V
Output Current per Channel 1A (Flash)
Frequency 1.8MHz
Applications Camera Flash
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD

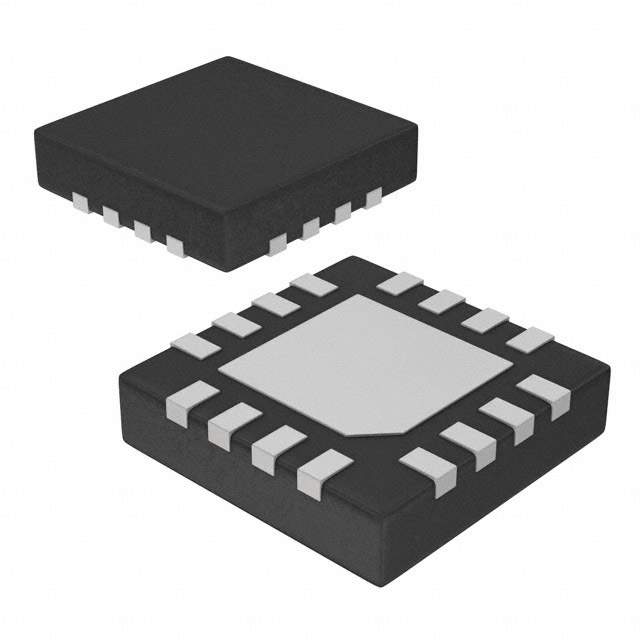

Package 16-VFQFN Exposed Pad
Manufacturer Package 16-QFN (4x4)
Win Source Part Number 795594-STCF07PNR
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name STCF07
Introduction Date November 18, 2009
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian STCF07PNR CAD Model

Description

STCF07PNR - A High-Efficiency Power Management IC from STMicroelectronics

The STCF07PNR is a cutting-edge power management integrated circuit (IC) developed by STMicroelectronics, designed to deliver high efficiency and reliability for a wide range of applications. This versatile IC is particularly suitable for portable devices where extended battery life is crucial, such as smartphones, tablets, and other handheld electronics.

At the heart of STCF07PNR's design is a step-down switching regulator with a fixed frequency of 1.5 MHz, which allows for a compact power supply solution with minimal external components. The use of a high switching frequency enables the use of small surface-mount inductors and capacitors, reducing the overall footprint and cost of the power supply design.

The STCF07PNR boasts an impressive input voltage range of 2.5V to 5.5V, making it highly adaptable to different power sources. Its output voltage is adjustable from 0.8V to VIN, allowing for great flexibility to power a variety of loads. With an output current capability of up to 3A, this IC can easily handle high power demands.

One of the key features of the STCF07PNR is its high efficiency, which can reach up to 95%. This is achieved through the use of synchronous rectification and a low quiescent current. The high efficiency not only extends battery life but also minimizes heat generation, thereby enhancing the overall performance and longevity of the device.

Moreover, the STCF07PNR is equipped with a host of protective features to ensure safe operation under various conditions. These include overcurrent protection, thermal shutdown, and under-voltage lockout. The presence of these protective measures ensures that the power management IC can safeguard itself and the device it powers from potential damage caused by abnormal operating conditions.

For ease of integration, the STCF07PNR is available in a compact QFN-16 (3x3 mm) package, which is ideal for space-constrained applications. Its robust design and comprehensive set of features make the STCF07PNR an excellent choice for designers looking to enhance the power efficiency and safety of their next-generation portable devices.
