Product Overview: STD22NF06AG - STMicroelectronics

The STD22NF06AG is a high-performance N-channel Power MOSFET produced by STMicroelectronics, a leader in the semiconductor industry. This component is designed to deliver efficiency and reliability for a wide range of applications, including power supplies, converters, and motor control systems. With its advanced technology and robust design, the STD22NF06AG stands out as a premier choice for electronic designers seeking to enhance their power management solutions.

Key Features

• Low On-Resistance: The STD22NF06AG boasts an extremely low on-state resistance (R<sub>DS(on)), which translates to reduced conduction losses and improved overall efficiency in the application it is used.
• High Current Capability: With a continuous drain current (I<sub>D) rating of up to 22A, this MOSFET can handle significant current loads, making it suitable for demanding power applications.
• High Switching Speed: The fast switching performance of the STD22NF06AG minimizes switching losses and enables high-frequency operation, which is essential for modern power electronic devices.
• Enhanced Durability: Constructed to withstand tough conditions, the device features a robust design that ensures long-term reliability and stability under various operating scenarios.
• Low Gate Charge: A low gate charge (Q<sub>g) facilitates efficient gate drive performance, which is critical for achieving low switching energy and faster response times.
• 100% Avalanche Tested: Each unit undergoes rigorous testing to guarantee safe operation during conditions that may induce avalanche phenomena.

Applications

• Switch Mode Power Supplies (SMPS)
• DC-to-DC converters
• Motor Control Systems
• Power Management Functions
• High-Efficiency Power Conversion

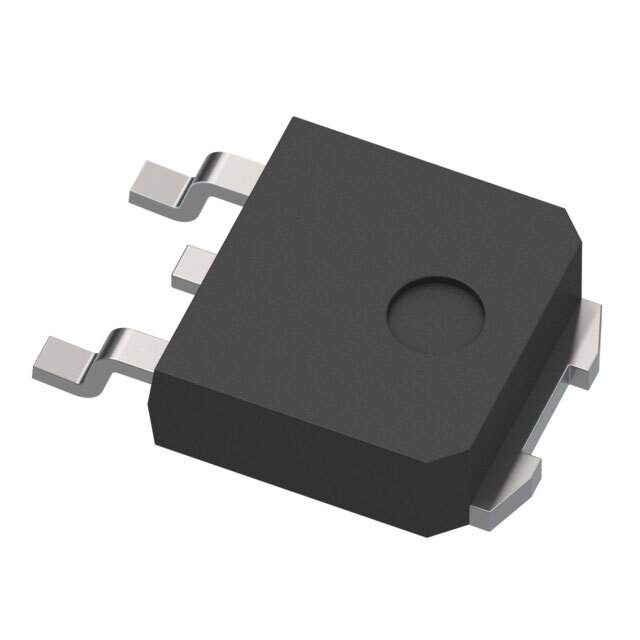

The STD22NF06AG from STMicroelectronics is encapsulated in a DPAK package, which not only ensures compactness but also offers excellent thermal performance. This, combined with the aforementioned features, makes the STD22NF06AG a versatile and efficient component for designers aiming to optimize power efficiency and thermal management in their electronic systems.

For detailed specifications and application support, customers can access comprehensive datasheets and technical documentation provided by STMicroelectronics. The company's commitment to quality and innovation ensures that the STD22NF06AG is a reliable and high-performing solution for your power electronic needs.
