Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Outputs and Type 40, Non-Isolated
Voltage - Input 6V ~ 24V
Supplied Contents Board(s)
Utilized IC / Part A5974D, STAP08DP05, STM8A
Base Product Number STEVAL
Other Names -1138-STEVAL-ILL058V1,497-15180
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8473.30.1180
Win Source Part Number 1283877-STEVAL-ILL058V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL058V1 CAD Model

Description

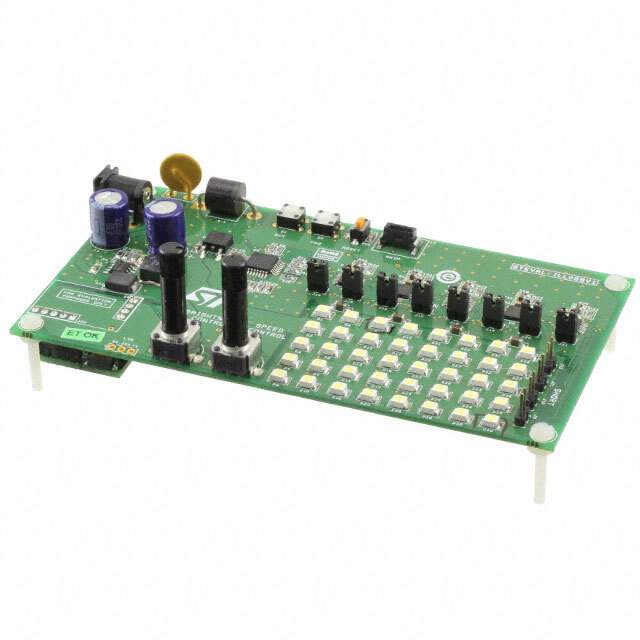

STEVAL-ILL058V1 - LED Array Driver Evaluation Board by STMicroelectronics

The STEVAL-ILL058V1 from STMicroelectronics is a state-of-the-art LED array driver evaluation board designed for those seeking a high-efficiency, flexible solution for driving LED arrays. This innovative evaluation platform is built around the STP16CP05 LED driver, which is capable of providing constant current to up to 16 LED channels, ensuring uniform brightness and extending the lifespan of the LEDs.

One of the key features of the STEVAL-ILL058V1 is its scalability. Users can easily connect multiple boards in series to create larger LED arrays without compromising on performance. This makes it an ideal choice for applications requiring complex lighting schemes such as architectural lighting, signage, and decorative lighting.

The board operates over a wide range of input voltages and offers excellent efficiency thanks to its low voltage drop. The STP16CP05 driver includes built-in error detection features such as open LED and short-circuit detection, which contribute to the overall reliability and robustness of the lighting system.

Programming and customization are made easy with the STEVAL-ILL058V1. The board is compatible with ST's software tools, which allow for fine-tuning of the LED current, adjustment of the grayscale, and other parameters to meet the specific needs of any application. Moreover, the board is equipped with a standard communication interface for seamless integration with external control units.

For design engineers and hobbyists alike, the STEVAL-ILL058V1 offers a convenient and efficient solution for experimenting with and developing LED lighting applications. Its compact size, combined with its powerful and flexible features, make it an excellent choice for a wide range of LED driving scenarios.

With the STEVAL-ILL058V1, STMicroelectronics continues its commitment to providing innovative solutions for the lighting industry, helping designers to achieve energy-efficient, high-performance lighting systems.
